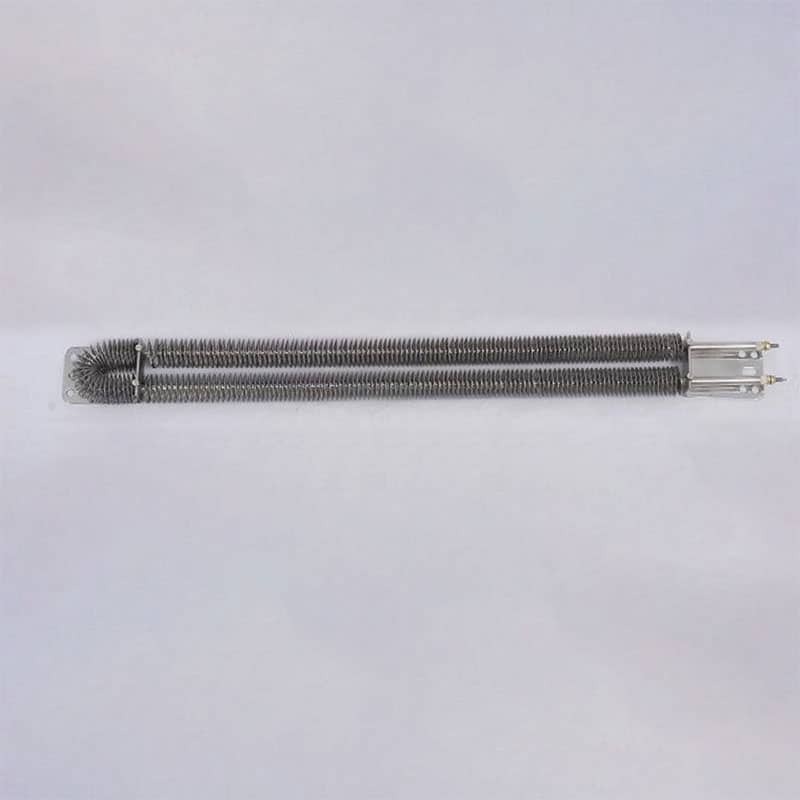

Air Heater

Name: Air Heater
Brand: DHE Heaters Private Limited
Price: 200 INR
Availability: InStock

Price 200 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Air Heater Specification

Usage & Applications
Industrial/process hot air generation

Type
Air Heater

Material
Stainless Steel, Inconel Alloy, Titanium

Capacity
High Output

Voltage
110 V - 415 V

Power
Customizable

Power Source
Electric

Input Voltage
110 V - 415 V

Output Voltage
As per input

Installation Type
Duct/Inline Mounting

Dimension (L*W*H)
Custom as per requirement

Weight (kg)
As per design

Color
Metallic Silver

Mounting
Flanged/bracketed

Conductor
NiCr 80/20

High Voltage Tolerance
0 mA @ 1500V

Resistance Tolerance
10%

Shape
Tubular/U-shaped

Designed For
Continuous duty cycle

Max Temperature
600C

Insulation
Siliconized MGO

Sheath Material
Stainless/Alloy/Titanium

Watt Density
Up to 40 W/in2

Heating Element Core
Nickel-Chromium

Air Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Air Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Discover the Meritorious Air Heater, crafted with pristine stainless steel, alloy, or titanium sheaths and a laureate-grade NiCr 80/20 conductor for supreme durability and efficient thermal transfer. Instant Checkout enables you to lock in special promotions and secure an elite addition to your industrial set-up. With high watt density up to 40 W/in2, siliconized MGO insulation, and resistance tolerance of 10%, this air heater handles continuous duty at temperatures up to 600C. Customizable mounting, dimensions, and power provide unmatched adaptability, making it a truly distinguished choice for high-output process heating. Perfect for robust applications-crafted by a leading Indian manufacturer and supplier.

Premium Material, Versatile Use, and Advanced Features

Manufactured using stainless steel, inconel alloy, or titanium, this air heater boasts a pristine, corrosion-resistant body. Designed as a high-output industrial solution, it excels in process hot air generation, suitable for inline or duct mounting. The robust core of Nickel-Chromium and advanced siliconized MGO insulation afford superb longevity and precision in heating. Flanged or bracketed mounts and customizable shapes accommodate specialized operational requirements, making it an ideal fit for demanding applications.

Sample Policy, Availability, and Certifications

Samples are available for inspection with initial Purchase Order placement, easing your order processing. We ensure a smooth dispatching process, so you can evaluate product integrity before finalizing larger orders. Each air heater is supported by quality certifications, guaranteeing safety and performance. Order processing is seamless, enabling an efficient transition from request to receipt-demonstrating our commitment to professional standards and client satisfaction in every transaction.

FAQ's of Air Heater:

Q: How does the air heater handle continuous duty cycles?

A: The air heater is engineered for continuous duty cycles, utilizing a robust Nickel-Chromium core and durable sheath materials to maintain stable performance during prolonged operation at high temperatures.

Q: What types of materials are used in manufacturing the air heater?

A: This air heater is manufactured using high-quality stainless steel, inconel alloy, or titanium, ensuring a pristine build that resists corrosion and supports efficient thermal conductivity in industrial environments.

Q: When will samples be available for evaluation?

A: Samples can be provided upon submission of a Purchase Order, allowing you to evaluate the product before committing to bulk orders. Our order processing and dispatching are prompt to ensure quick delivery.

Q: Where can this air heater be installed?

A: The unit offers versatile installation options, including both duct and inline mounting, and is suitable for a wide range of industrial and process hot air generation applications.

Q: What are the main benefits of using this air heater in industrial settings?

A: Key benefits include high output capacity, customizable dimensions and power, precision resistance and voltage tolerances, and long-term reliability due to advanced insulation and high-quality materials.

Q: How does certification support product reliability?

A: Each heater is backed by relevant certifications, which validate its safety, performance, and compliance with industrial standards, reinforcing customer confidence in every purchase.
