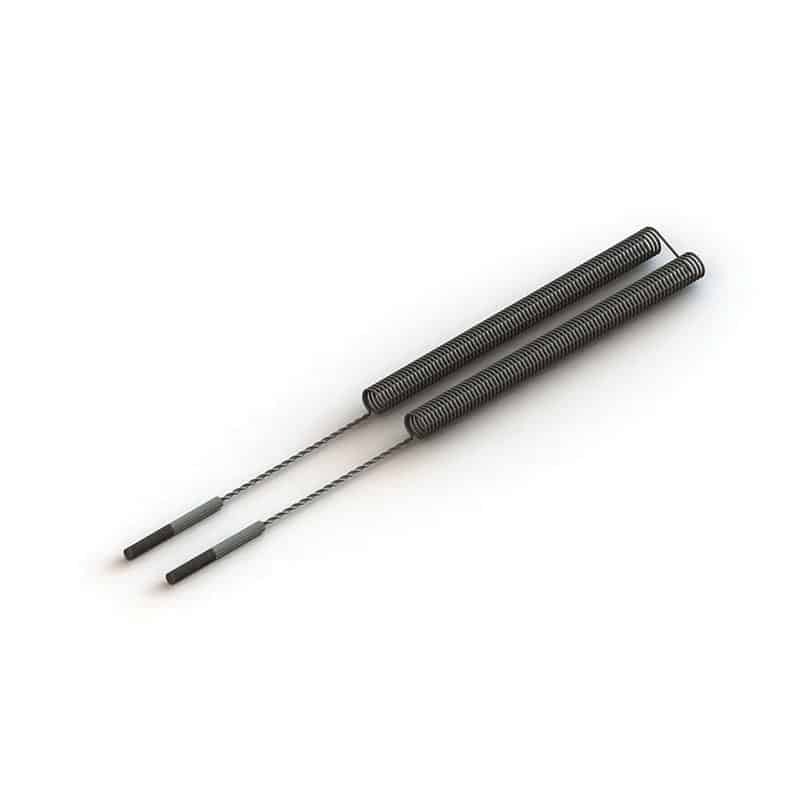

Furnace Coil Heater

Name: Furnace Coil Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Furnace Coil Heater Specification

Usage & Applications
Industrial furnaces, heating chambers

Type
Furnace Coil Heater

Material
Nikrothal 80/20, Nikrothal 70/30, A1, APM

Capacity
High temperature up to 1200C

Voltage
230 or 480 V

Power
up to 25 kW

Power Source
Electric

Input Voltage
230 or 480 V

Output Voltage
As per design

Installation Type
Custom mount / Insert

Dimension (L*W*H)
Customizable

Weight (kg)
Depends on design

Color
Metallic

Outside Diameter
Custom sizes

Corrosion Resistant
Yes

High Temperature Resistance
Yes

Watt Density
<3 W/cm2

Coil Length
Custom length

Long Life Expectancy
Yes

Spiral Coil Design
Yes

Temperature Range
Up to 1200C

Quick Heat Response
Yes

Termination
Custom options

Furnace Coil Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Furnace Coil Heater

Product Description

Ceramic Furnace Heaters are high-temperature industrial heating elements designed for furnaces, kilns, and thermal processing systems. These heaters are engineered for extreme temperature applications, offering excellent thermal stability, uniform heat distribution, and long operational life.

Construction Details

Component	Specification
Heating Element	Advanced Ceramic Material (High Electrical Conductivity)
Insulation	High-grade refractory ceramic insulation
Outer Casing	Stainless Steel (SS 304 / SS 310) / Mild Steel
Core Material	High temperature ceramic core
Construction Type	Modular ceramic heating assembly
Mounting	Panel / wall / groove fitted

Electrical Specifications

Parameter	Specification
Operating Voltage	110 V / 230 V / 415 V / 440 V
Resistance Tolerance	+10%
Insulation Resistance	> 5 M
High Voltage Test	1500V AC for 1 minute
Frequency	50-60 Hz

Thermal Performance

Parameter	Specification
Temperature Range	Up to 1600^oC
Heat Transfer Mode	Radiation
Thermal Efficiency	High efficiency with advanced insulation
Heat Distribution	Uniform across furnace chamber

Mechanical Specifications

Parameter	Specification
Heater Type	Ceramic modules / panels
Size	As per furnace design
Thickness	As per application requirement
Installation	Replaceable modular design

Mounting & Installation

Parameter	Specification
Mounting Type	Wall / ceiling / side mounting
Fixing Method	Ceramic holders / brackets
Expansion Handling	High thermal shock resistance

Applications

Industrial ovens with high insulation
Melting furnaces
Laboratory furnaces
Heat treatment furnaces
Ceramic and glass industries
High-temperature process industries

Quality Standards

100% electrical testing before dispatch
High temperature endurance testing
Resistance and wattage verification
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	High-temperature industrial applications
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Shock-resistant packaging
Ceramic-safe protective packing
Export-grade wooden crate
Proper labeling with technical specifications

Customization Options

High temperature designs up to 1600^oC
Custom shapes and modular sizes
Multi-zone heating systems
Special refractory insulation
Heavy-duty export-grade furnace heaters

Experience sterling performance with our formidable Furnace Coil Heater, expertly crafted for industrial applications. With a lofty temperature range of up to 1200C and watt density below 3 W/cm2, this advanced heater maximizes efficiency. Grab yours now through our reduced advance purchase offer. Designed for longevity and quick thermal response, it features robust corrosion resistance, a spiral coil structure, and custom dimensions to fit any specification. These versatile coils, available from a trusted manufacturer and supplier in India, ensure reliable high-temperature operations and are built from premium Nikrothal and APM materials.

Features, Other Attributes & Application Areas

Our Furnace Coil Heater stands out with impressive high-temperature endurance up to 1200C, sterling corrosion resistance, and formidable quick heat-up performance. The spiral coil design ensures even heating and extended life expectancy. It accommodates various customizations, including bespoke coil length, diameter, and termination. These heaters are indispensable for industrial furnaces and heating chambers, delivering precision and efficiency in rigorous environments where reliability and tailored solutions are essential.

FOB Port, Export Markets & Delivery Details

We offer express shipping from major Indian ports, ensuring your shipped goods reach destinations quickly. Our main export markets include North America, Europe, Asia, and the Middle East. With streamlined drop-off procedures, we guarantee delivery time as per agreements-usually within a few weeks, depending on order volume and customization complexity. Rely on our consistent export services for prompt, efficient Furnace Coil Heater deliveries and seamless international shipping experiences.

FAQ's of Furnace Coil Heater:

Q: How does the furnace coil heater ensure long operational life?

A: The heater utilizes high-quality materials like Nikrothal 80/20, Nikrothal 70/30, A1, and APM, coupled with a corrosion-resistant spiral coil design, which significantly extends the product's lifespan even in demanding industrial environments.

Q: What application areas are suitable for this furnace coil heater?

A: It is ideal for industrial furnaces, heating chambers, and applications requiring high-temperature performance up to 1200C, such as metal treatment, ceramics, and scientific research facilities.

Q: When can I expect my goods to be shipped after placing an order?

A: After finalizing order details and custom specifications, most shipments are dispatched within a few weeks. Exact delivery time depends on volume and the necessary customizations.

Q: Where can I request custom dimensions or installation types?

A: Custom requests can be made directly with the manufacturer or authorized supplier. You can specify outside diameter, coil length, and installation type to match your facility's needs.

Q: How does the advance purchase process work for these heaters?

A: You can secure your coil heater at a reduced rate through our advance purchase program, ensuring prioritized production and timely shipment upon completion.

Q: What are the main benefits of using this furnace coil heater in industrial settings?

A: Benefits include lofty temperature capability, quick heat response, customizable design, and proven durability-making it an efficient solution for demanding industrial heating applications.
