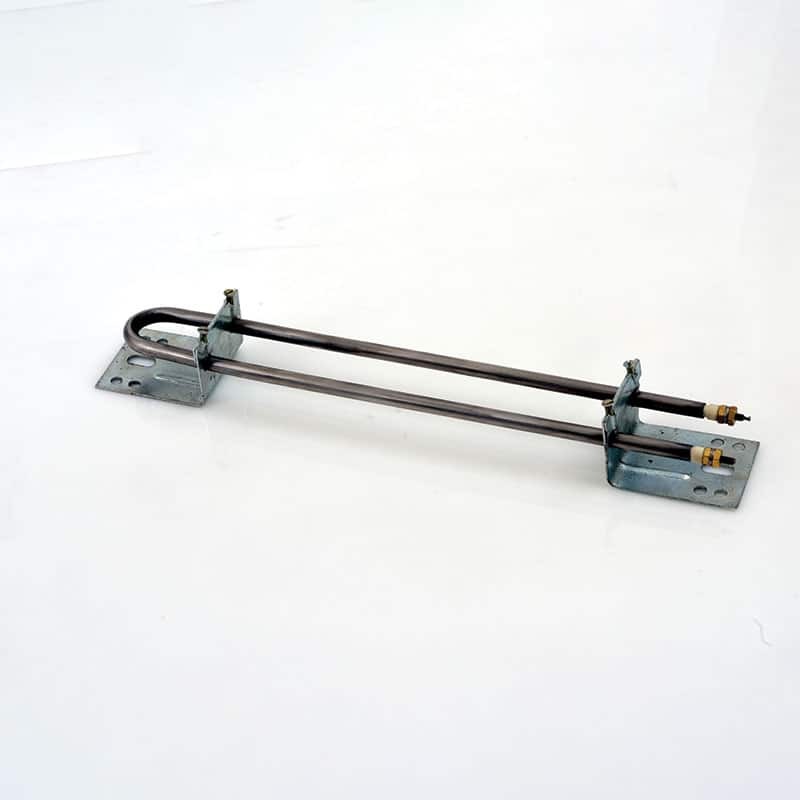

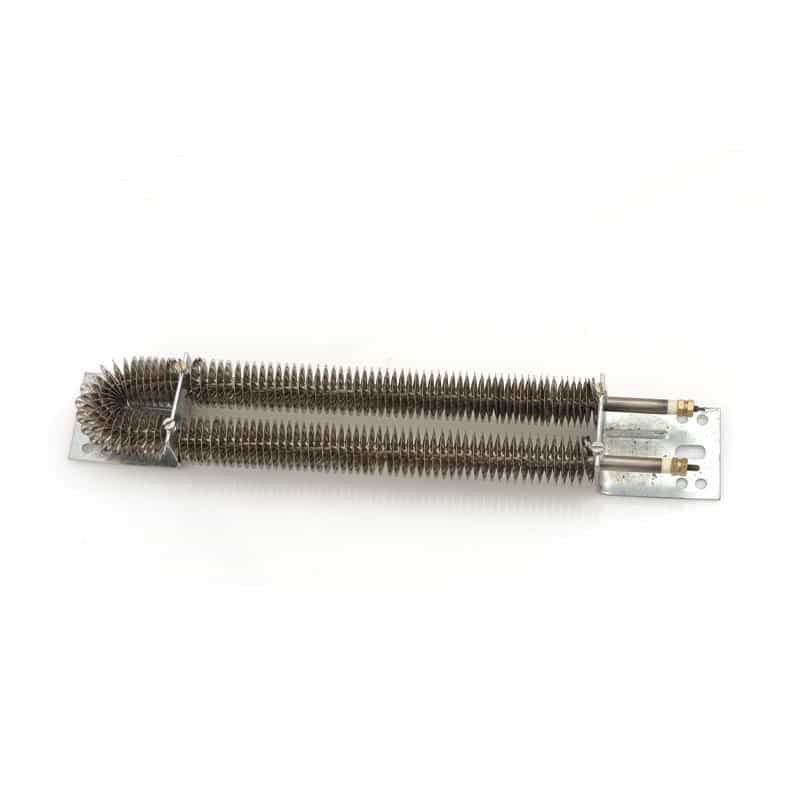

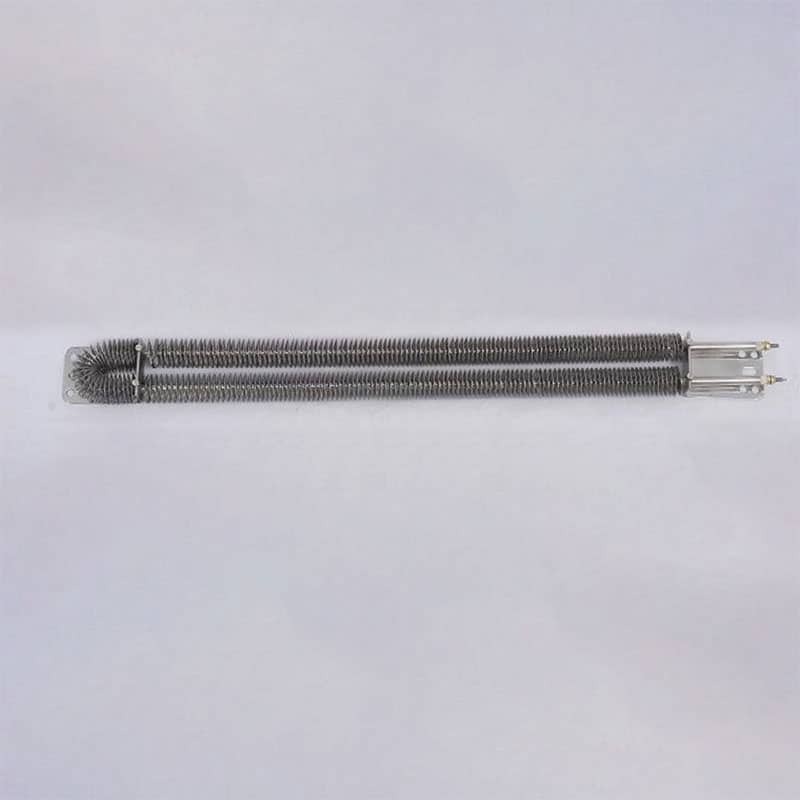

Industrial Tubular Heater

Name: Industrial Tubular Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Industrial Tubular Heater Specification

Usage & Applications
Industrial heating, water, oil, chemical processing

Type
Industrial Tubular Heater

Material
Stainless Steel, Inconel alloy, Titanium

Capacity
Standard/Custom

Voltage
110 V to 415 V

Power
up to 40 W/in2

Power Source
Electric

Input Voltage
110 V to 415 V

Output Voltage
As per input

Installation Type
Immersion/Flange/Mounting

Dimension (L*W*H)
Customizable

Weight (kg)
Depends on size

Color
Metallic Silver/Grey

Shape
Tubular/Rod

Sheath Material
Stainless Steel/Inconel/Titanium

Element Type
Cartridge/Tubular

High Voltage Tolerance
0mA@1500V

Resistance Tolerance
10%

Termination
Single/Double Ended

Mounting
Threaded/Flanged

Surface Finish
Polished metallic

Conductor
Ni-Cr 80/20

Length Tolerance
2% or 5mm

Max. Temp
750C

Immersion Length
Customizable

Insulation
Siliconized MGO

Heat Transfer
Direct immersion

Industrial Tubular Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Industrial Tubular Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Experience the eminent performance of our Industrial Tubular Heater, a best-seller in the sector. Crafted from preeminent materials like Stainless Steel, Inconel, and Titanium, this incomparable heater ensures exceptional durability and direct, efficient heat transfer. Equipped with a Ni-Cr 80/20 conductor and siliconized MGO insulation, it offers a resistance tolerance of 10% and withstands temperatures up to 750C. Customizable immersion lengths, superior mounting options, and a polished metallic finish make this heater a special promotion from a leading manufacturer and supplier in India.

Versatile Industrial Solutions for Every Application

The Industrial Tubular Heater is ingeniously designed for a multitude of applications such as water, oil, and chemical processing. Its usage type ranges from direct immersion to flange mounting, making it a flexible choice for varied use. Widely employed by manufacturers, industrial plants, and process engineers, it guarantees efficient heating in standard or custom capacities, delivering reliable performance for diverse sectors.

Attractive Offers and Reliable Supply Nationwide

We offer flexible payment terms to enhance your purchasing experience and uphold the market value of our industrial tubular heaters. Servicing the main domestic markets across India, we ensure express shipping and a consistent supply ability to meet urgent and bulk orders. Take advantage of promotional offers designed to provide maximum value while minimizing procurement delays, ensuring swift delivery to your facility.

FAQ's of Industrial Tubular Heater:

Q: How do I choose the right sheath material for my industrial tubular heater?

A: Selecting the ideal sheath material depends on the chemicals, liquids, or environment where the heater will be used. Stainless steel is suitable for general applications, while Inconel or Titanium is preferable for corrosive or high-temperature settings.

Q: What is the main benefit of direct immersion heat transfer in tubular heaters?

A: Direct immersion ensures efficient heat transfer to the medium, resulting in faster heating and energy savings, which is especially beneficial for industrial processes requiring precise temperature control.

Q: When should I opt for a flanged versus a threaded mounting option?

A: Flanged mountings are recommended for larger tanks or high-pressure applications, while threaded options are suitable for smaller vessels or processes requiring easier installation and removal.

Q: Where are industrial tubular heaters predominantly used?

A: They are mainly used in water heating systems, oil processing plants, chemical manufacturing facilities, and various industrial heating applications requiring robust and reliable thermal solutions.

Q: What is the process for customizing immersion length and power in your heaters?

A: You can specify the required immersion length, power rating, and termination type during your order placement. Our engineers will assist in tailoring the heater to meet your precise operational needs.
