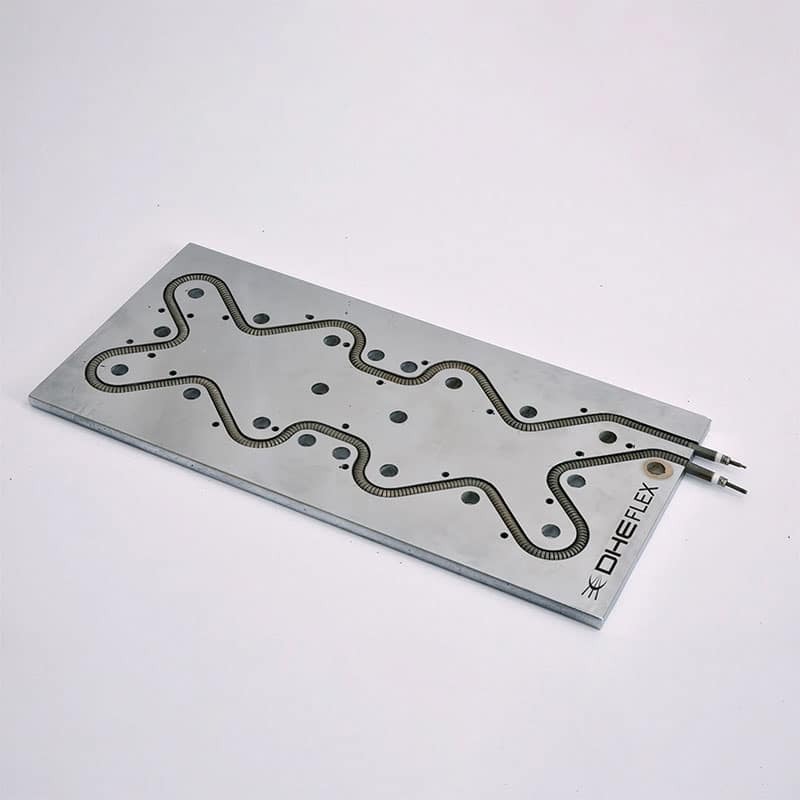

Flexible Mainfold Heater

Name: Flexible Mainfold Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Flexible Mainfold Heater Specification

Usage & Applications
Manifold heating in injection molding and industrial applications

Type
Flexible Manifold Heater

Material
Metal Sheath

Capacity
Custom as per application

Voltage
230V (stock sizes)

Power
Varies by size (7W/cm2 in 6.5mm, 8W/cm2 in 8mm)

Power Source
Electric

Input Voltage
230V

Output Voltage
Adjustable as per design

Installation Type
Flexible/Bendable (12mm min. radius by hand)

Dimension (L*W*H)
Available in round (6.5mm, 8mm, 8.5mm) or square (8x8mm); length various

Weight (kg)
Varies by length and size

Color
Metallic silver

Multiple connection types
Available

Length tolerance
+1% or +/-5mm

Resistance tolerance
+10%

Diameter tolerance
+0.1mm

Watt density
7W/cm2 (6.5mm), 8W/cm2 (8mm)

Leakage current
0mA @ 1000V

Sheath temperature
750C

High voltage resistance
1000V AC

Round/square section options
Available

Minimum bending radius
12mm

Flexible Mainfold Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Flexible Mainfold Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Introducing the Latest Flexible Manifold Heater, crafted for eminent performance and first-rate reliability in industrial settings. This superb heater features a diameter tolerance of +0.1mm and length tolerance of +1% or +/-5mm, ensuring precision for manifold heating. With watt densities of 7W/cm2 (6.5mm) and 8W/cm2 (8mm), plus high voltage resistance of 1000V AC, enjoy zero leakage at 1000V. Available in both round and square cross-sections, with adjustable output voltage, multiple connection types, and metallic silver finish-order now to grab this flexible, bendable solution designed for customized power and application.

Versatile Application & Usage Instructions

The Flexible Manifold Heater is a superb solution extensively used for manifold heating in injection molding and other industrial applications. To utilize, simply bend the heater by hand to a minimum radius of 12mm, and install it into the manifold channel. It serves as an eminent choice for even, precise heating, used as a direct replacement for conventional heaters in confined or complex layouts-offering both round and square options for various setups.

Domestic Market Advantage & Order Policy

Widely available within India, our Flexible Manifold Heater is dispatched rapidly, with express shipping options to minimize your expenditure and downtime. We gladly accept various payment terms for your convenience, and a clear sample policy is in place for first-time buyers-grab the opportunity to test suitability before committing. Our first-rate logistics ensure your orders are processed efficiently, helping you meet your operational requirements without delay.

FAQ's of Flexible Mainfold Heater:

Q: How does the Flexible Manifold Heater ensure precise heating?

A: The Flexible Manifold Heater offers excellent precision with diameter tolerance of +0.1mm, length tolerance of +1% or +/-5mm, and resistance tolerance of +10%. Its superb watt density and sheath temperature up to 750C further guarantee effective and even heat transfer for complex industrial applications.

Q: What are the available shapes and sizes for this heater?

A: You can order the heater in both round (6.5mm, 8mm, 8.5mm) or square (8x8mm) cross-sections. Length and power can be customized according to your application requirements, and the weight varies by the specific size selected.

Q: Where is the Flexible Manifold Heater typically used?

A: This eminent product is primarily used for manifold heating in injection molding machines and other industrial systems that require adaptable and efficient thermal solutions.

Q: What is the process for installation and bending?

A: To install, simply bend the heater by hand to the required shape, allowing a minimum bending radius of 12mm. Flexible design allows for quick, direct fitting into intricate channels and manifold systems.

Q: What are the benefits of choosing this heater over traditional types?

A: The first-rate flexibility, precise tolerances, and high voltage resistance up to 1000V AC-combined with zero leakage-make it a safer and more adaptable alternative to conventional heaters, improving thermal efficiency and setup versatility.

Q: How are orders processed and shipped within India?

A: Orders are dispatched efficiently throughout the Indian market, with options for express shipping to expedite delivery. Multiple payment methods are accepted, and a sample policy helps manage your expenditure before large-scale procurement.
