Super Heater

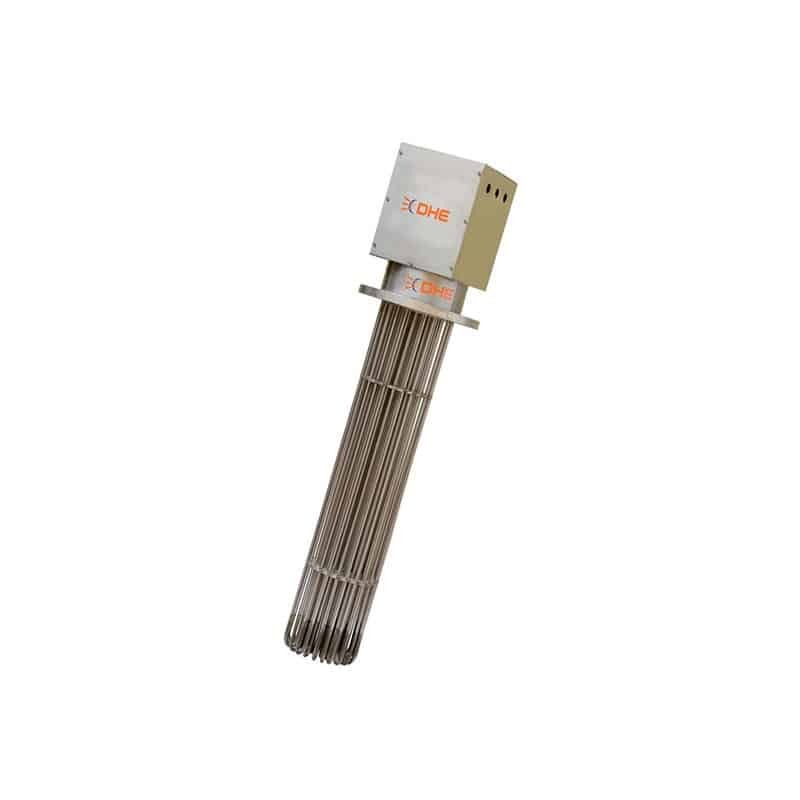

Name: Super Heater
Brand: DHE Heaters Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Super Heater Specification

Usage & Applications
Industrial

Type
Other

Material
Other

Capacity
500 Pcs/hr

Voltage
110 V To 415 V Volt (v)

Power
2000 Watt (w)

Power Source
Electric

Input Voltage
230 Volt (V)

Output Voltage
440 Volt (V)

Installation Type
Portable

Dimension (L*W*H)
2.2X4.2 Millimeter (mm)

Weight (kg)
50 Kilograms (kg)

Color
Silver

Warranty
6 MONTHS

Corrosion Resistant
Yes

Conductor
Ni-Cr 80/20

Termination
Single & Double Ended

Immersion Length
Customize

Watt Density
Up To 40 W/In2

Shape
U-Shape

Length Tolerance
+/-2% Or +/-5mm

Mounting
Flanged

Insulation
High-Purity Siliconized Mgo

Heater Finish
Polished

Max. Temp
750 Degree C

Resistance Tolerance
+/-10%

High Voltage Tolerance
0ma@1500v

Super Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
40 Days

Main Domestic Market
All India

About Super Heater

Product Overview

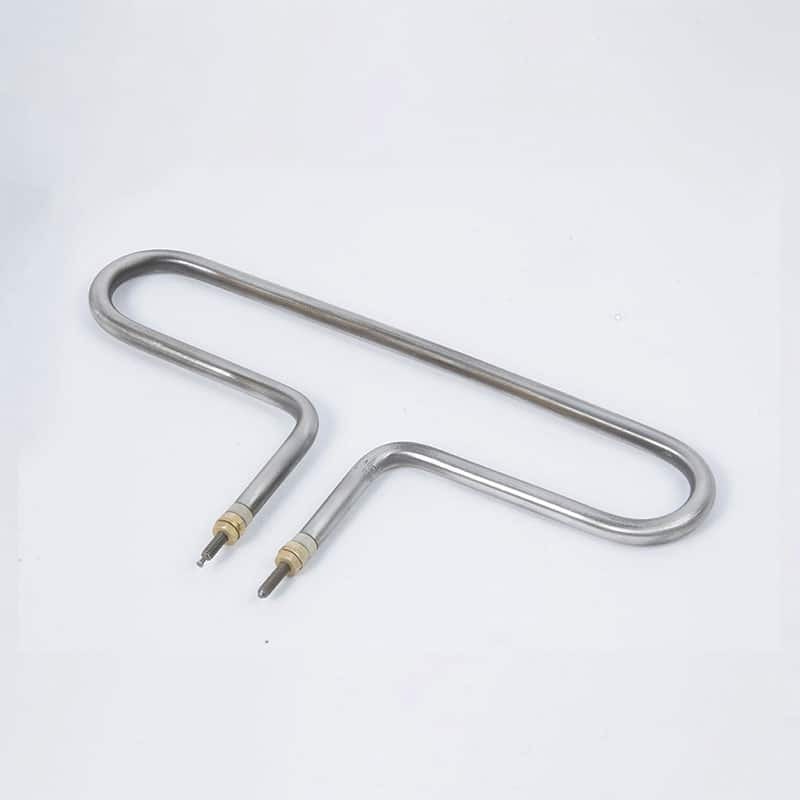

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750C
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Spotlight your operations with our Super Heater-crafted for the value-driven buyer who prioritizes durability and gilt-edged performance. Manufactured in India, this top-ranking unit features unparalleled corrosion resistance for unmatched longevity and reliability up to 750C. Its polished U-shape, customizable immersion length, and flanged mounting support a multitude of applications. With high-purity siliconized MgO insulation and incomparably robust Ni-Cr 80/20 conductors, this super heater meets the highest voltage and resistance tolerances, ensuring efficiency that is truly incomparable. Order now for a shining example of engineering excellence.

Exceptional Benefits and Versatile Applications

Our Super Heater delivers primary competitive advantages such as outstanding corrosion resistance and gilt-edged operational reliability. Designed for both general and specific industrial heating needs, it is ideal for chemical processing, water heating, and oil heating tasks. Its customizable immersion length and polished finish combine with top-ranking materials like stainless steel, Inconel alloy, and titanium, making it a versatile solution-whether for large industrial settings or specialized tasks requiring precise heating control.

Reliable Supply, Broad Reach, and Streamlined Ordering

We guarantee a consistent supply of Super Heaters across India, ensuring prompt delivery through major FOB ports. With agile order processing and competitive, lowest price offers, we pride ourselves on meeting diverse industrial requirements efficiently. Our expansive main domestic market coverage assures swift shipment and accessible support, so every order is fulfilled promptly and reliably. Place your order today and experience the smoothest solution sourcing for your heating needs.

FAQ's of Super Heater:

Q: How does the corrosion-resistant feature benefit the Super Heater in industrial environments?

A: The corrosion-resistant construction ensures longevity and reliable performance in harsh industrial environments, reducing maintenance costs and downtime, especially in applications involving chemicals, water, or oil.

Q: What is the process for ordering a customized Super Heater to fit specific requirements?

A: You can place an order indicating custom specifications such as immersion length, termination type, and material preference. Our team ensures swift order processing and production to meet your unique operational needs.

Q: Where can the Super Heater be effectively used?

A: This Super Heater is suitable for general and specialized applications, such as chemical processing plants, oil heating systems, water boilers, and any industry requiring precise, robust heating solutions.

Q: What makes the Super Heater incomparable to other heating solutions?

A: Its use of high-purity siliconized MgO insulation, top-ranking materials like stainless steel, Inconel alloy, and titanium, paired with high voltage and resistance tolerances, establishes superior reliability and efficiency.

Q: When can I expect delivery after placing an order for the Super Heater?

A: We prioritize rapid order processing and leverage our broad domestic network to ensure prompt delivery through major FOB ports, minimizing wait times for our customers throughout India.
