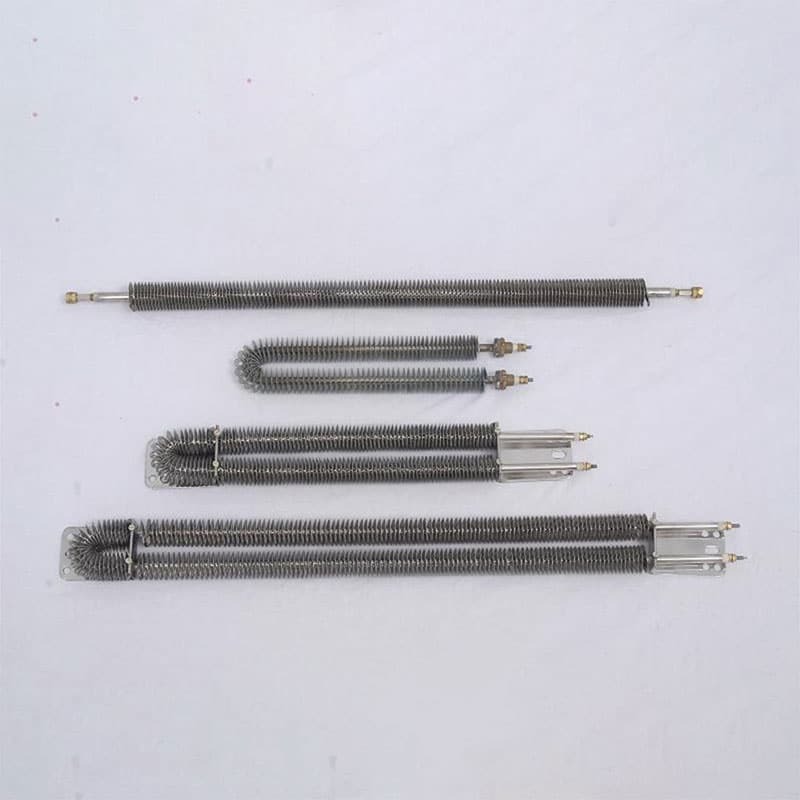

Finned Tubular Heater

Name: Finned Tubular Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Finned Tubular Heater Specification

Usage & Applications
Air/Process heating, Ovens, Ducts, Forced air applications

Type
Finned Tubular Heater

Material
Stainless Steel, Inconel alloy, Titanium (Sheath); Aluminium, Stainless Steel (Fins)

Capacity
Varies by application

Voltage
110 V to 415 V

Power
Customizable, up to design

Power Source
Electric

Input Voltage
110 V to 415 V

Output Voltage
Application dependent

Installation Type
Surface or Duct Mounted

Dimension (L*W*H)
As per requirement

Weight (kg)
Depends on size

Color
Metallic/Grey

Surface Area
Increased by fins

Fins Material
Aluminium, Stainless Steel

Corrosion Resistance
High

Mounting Hardware
Optional

Watt Density
up to 40 W/in2

Length Tolerance
+/-2% or 5mm

Lead Connection
Threaded, terminal plate

High Voltage Test
0mA@1500V

Conductor
Ni-Cr 80/20

Immersion Length
Customizable

Termination
Single/Double Ended

Max. Temp.
750C

Insulation
High-purity MGO

Shape
Straight, U, or custom

Resistance Tolerance
+/-10%

Sheath Material
Stainless Steel, Inconel, Titanium

Finned Tubular Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Finned Tubular Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

This Finned Tubular Heater is a best-seller recognized for its ineffable efficiency and terrific performance, garnering favorable reviews across industries. Engineered with noteworthy materials like stainless steel, Inconel, and titanium sheaths, and corrosion-resistant aluminium or stainless-steel fins, it offers exceptional versatility. With watt density up to 40 W/in2, customizable length, and high-purity MGO insulation, it delivers precise heating solutions. Suitable for air/process heating, ovens, and ducts, its customizable design, high voltage tolerance, and robust build elevate it to the top tier of industrial heaters. New models available.

Versatile Applications and Durable Materials

The Finned Tubular Heater is ideal for air and process heating, ovens, ducts, and forced air applications. To use, simply mount on surfaces or within ducts as per installation type. Key material features include corrosion-resistant stainless steel, Inconel alloy, or titanium sheath with aluminium or stainless steel fins for maximum durability. Its construction ensures reliable operation in challenging environments, making it a prime choice for varied sectors requiring consistent, efficient heat transfer.

Packaging, Market Value, and Shipping Details

Each Finned Tubular Heater is securely packaged to maintain its conditions during transit, reflecting its market value and quality. Units are shipped from major Indian FOB ports, carefully chosen to meet the asking price and valuation expectations. Sample availability is ensured for first-time buyers, facilitating confident purchasing decisions. With an emphasis on reliability and protection, packaging standards align with industry best practices, safeguarding the product through the shipping process until delivery.

FAQ's of Finned Tubular Heater:

Q: How is the Finned Tubular Heater installed for optimal performance?

A: The heater can be mounted directly onto surfaces or duct systems. Installation involves securing the heater using mounting hardware, ensuring proper electrical connection, and aligning it as per the intended airflow direction for efficient heat distribution.

Q: What are the main benefits of using a Finned Tubular Heater?

A: Finned Tubular Heaters offer high efficiency, improved heat transfer thanks to an increased surface area, and robust corrosion resistance, which extends operational life and reliability in demanding environments.

Q: When should I choose stainless steel versus Inconel or titanium for the sheath material?

A: Select stainless steel for standard applications, Inconel for higher resistance to oxidation and corrosion at elevated temperatures, and titanium for environments requiring maximum corrosion resistance, such as aggressive chemical or marine settings.

Q: Where can Finned Tubular Heaters be effectively used?

A: These heaters are well-suited for industrial air/process heating, ovens, ducts, and forced air applications in manufacturing, HVAC, food processing, and similar sectors.

Q: What is the process for customizing size and wattage requirements?

A: You can specify your requirements for length, shape, watt density, voltage, immersion length, and mounting options during ordering. The manufacturer will design and produce the heater to match your application's exact specifications.
