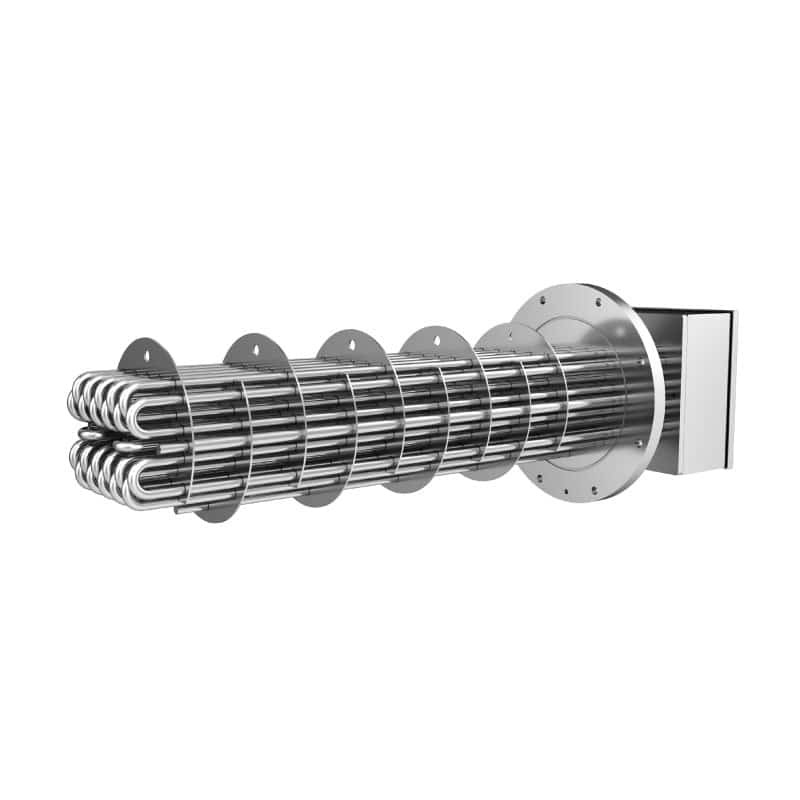

Super Heater

Name: Super Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Super Heater Specification

Usage & Applications
Industrial Boilers, Heat Exchangers

Type
Super Heater

Material
Stainless Steel, Inconel Alloy, Titanium

Voltage
110 V To 415 V Volt (v)

Power
Up To 40 W/In2 Watt (w)

Power Source
Electric

Input Voltage
110-415 V Volt (V)

Installation Type
Immersion/Industrial

Color
Metallic Silver

Termination
Single & Double Ended

Maximum Temperature
750C

Resistance Tolerance
10%

Sheath Finish
Corrosion Resistant

Insulation
High-Purity Siliconized MgO

Immersion Length
Customizable

Control Type
Thermostatically Controlled

Shape
Tubular Configuration

Conductor
Ni-Cr 80/20

Application Area
Steam Generation

Length Tolerance
2% or 5mm

High Voltage Tolerance
0mA@1500V

Super Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Super Heater

Product Description

Super Heater is a high-performance industrial tubular heating system designed for air, water, and oil heating applications. It is manufactured using high-grade sheath materials and high purity MgO insulation for efficient heat transfer, durability, and high-temperature performance up to 500^oC.

Construction Details

Component	Specification
Sheath Material	SS 316 / Incoloy 800 (Seamless) / Titanium
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation	High Purity High Temperature Magnesium Oxide (MgO)
Construction Type	Tubular high-density heating elements
Design	Multi-tube bundle heater assembly

Electrical Specifications

Parameter	Specification
Operating Voltage	380 V / 415 V
Resistance Tolerance	-10.00%
High Voltage (HV) Test	0 mA @ 2000 V
Insulation Resistance (Megger)	> 20 M
Frequency	50-60 Hz
Control System Compatibility	Suitable for industrial temperature controllers

Thermal Performance

Parameter	Specification
Maximum Temperature	Up to 500^oC
Application Type	Air / Water / Oil heating
Heat Transfer Mode	Conduction + convection
Efficiency	High thermal efficiency with uniform heat distribution

Application Range

Air Heating: Up to 500^oC hot air systems
Water Heating: Up to 200^oC hot water systems
Oil Heating: Up to 200^oC thermal oil systems

Standard Density Design (Tube Configuration)

Power Rating	Configuration	Length
12 kW	(1 kW x 12 tube)	18 inch
18 kW	(1.5 kW x 12 tube)	18 inch
24 kW	(1.5 kW x 18 tube)	21 inch
36 / 40 kW	(1.5 kW x 24 tube)	24 inch
54 / 60 kW	(1.5 kW x 36 tube)	24 inch
90 kW	(2 kW x 45 tube)	30 inch

Mechanical Specifications

Parameter	Specification
Tube Type	High temperature tubular elements
Assembly Type	Bundle / bank heater system
Length Range	18" to 30" (as per design)
Mounting	Flanged / duct mounted / custom frame

Quality & Testing Standards

100% electrical testing before dispatch
High Voltage test: 2000V (0 mA leakage)
Megger test > 20 M insulation resistance
Resistance tolerance verification (-10%)
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	Industrial use only
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Individual protective packing for tubes
Heavy-duty export-grade wooden crate
Moisture-proof wrapping
Batch-wise identification and labeling

Customization Options

Different sheath materials (SS 316 / Incoloy 800 / Titanium)
Custom voltage and watt density
Special tube configurations
High-temperature heavy-duty versions
Custom flange and duct mounting systems

Test Certificate

Electrical test report
High voltage test report
Resistance & wattage validation report
Available on request

Grab the spotlight in thermal efficiency with our blue-ribbon Super Heater, meticulously engineered for industrial steam generation. Capitalise on outstanding performance with opulent features: a first-class Ni-Cr 80/20 conductor, high-purity siliconized MgO insulation, and a corrosion-resistant sheath in options like Stainless Steel, Inconel Alloy, or Titanium. Customizable immersion length, single or double-ended termination, and thermostatic control ensure tailored solutions. Designed for up to 750C and 40 W/In2, these tubular heaters promise reliable, first-class operation-making them the ideal choice for discerning manufacturers and suppliers across India.

Specific Usage and Plant Application

Our Super Heaters are specifically used in industrial boilers and heat exchangers, standing out as an essential component in steam generation plants. They serve as the backbone in a variety of process industries, where consistent and efficient heating is paramount. Engineered for immersion and industrial installation, these heaters are ideal for sectors demanding dependable, precision-controlled heat transfer. Whether used as replacement parts or in new setups, their application secures reliable plant operation and efficiency.

Certifications, Supply Ability, and Quick Dispatch

Each Super Heater complies with rigorous industry standards, ensuring consistent and reliable operation. As a trusted manufacturer and supplier in India, we guarantee blue-ribbon quality with prompt order completion and quick dispatch. Sample units are available upon request, allowing you to evaluate performance before bulk procurement. Capitalise on competitive asking prices and flexible supply ability, making large-volume or custom orders smooth and timely for your requirements.

FAQ's of Super Heater:

Q: How is the immersion length of the Super Heater customized?

A: The immersion length of the Super Heater can be tailored to your system's specific requirements, ensuring a precise fit for your industrial processes and maximizing heating efficiency.

Q: What applications is this Super Heater ideally suited for?

A: This Super Heater is specially designed for use in industrial boilers and heat exchangers, dominated by steam generation and heat transfer demands across a variety of manufacturing plants.

Q: When can I expect a sample and order delivery?

A: Sample units are available on request for rapid evaluation. Thanks to our streamlined processes and quick dispatch capabilities, bulk orders are completed and dispatched promptly upon finalization.

Q: Where can the Super Heater be installed within a plant?

A: The Super Heater is suitable for installation in immersion and industrial setups, enabling easy integration into both existing equipment and new plant designs where steam or high-temperature heating is required.

Q: What is the process for placing a custom order?

A: To place a custom order, simply specify your requirements regarding dimensions, material, voltage, and termination style. Our team will provide a tailored quotation and guide you through the order completion procedure.

Q: What are the benefits of using high-purity siliconized MgO insulation?

A: High-purity siliconized MgO insulation enhances heat transfer, ensures superior electrical safety, and contributes to overall durability and longevity of the Super Heater in demanding industrial environments.
