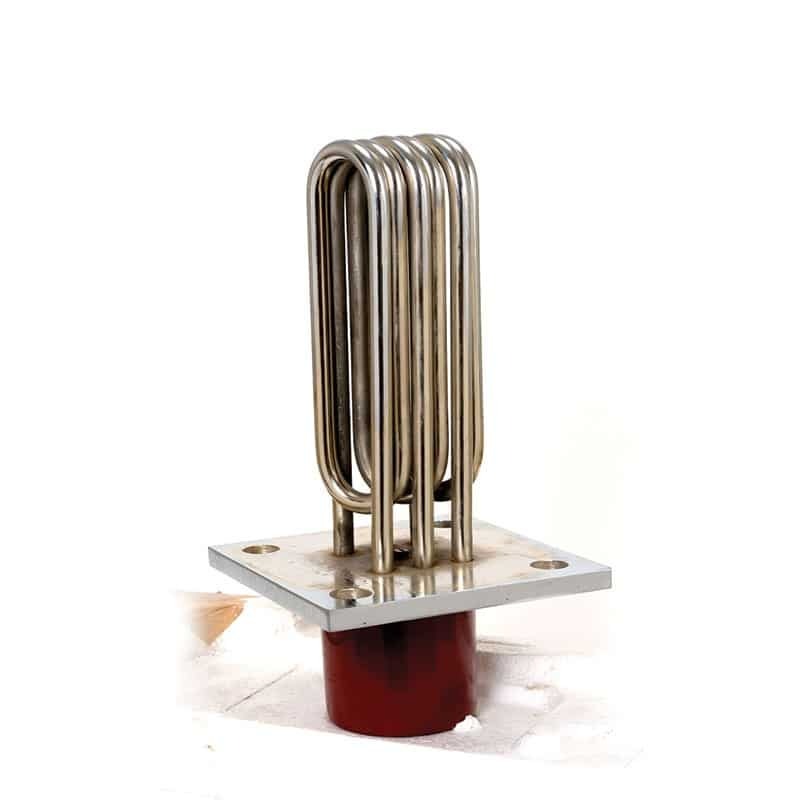

Immersion Heater

Name: Immersion Heater
Brand: DHE Heaters Private Limited
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Immersion Heater Specification

Usage & Applications
Liquid heating, industry, laboratory

Type
Oil Filled Heater

Material
Stainless Steel

Capacity
Varies by model Pcs/hr

Voltage
110 V to 415 V Statampere (sA)

Power
Customizable Teraampere (TA)

Power Source
Electric

Input Voltage
110 V to 415 V Volt (V)

Output Voltage
As per design Volt (V)

Installation Type
Other

Dimension (L*W*H)
Custom size Inch (in)

Weight (kg)
Varies per unit Kilograms (kg)

Color
Metallic Silver

Warranty
6 months

Conductor
Ni-Cr 80/20

High Voltage Tolerance
0mA@1500V

Corrosion Resistance
High

Insulation
High-purity siliconized MGO

Resistance Tolerance
+/-10%

Lead Connection
Shielded wires

Immersion Length
Customizable

Termination
Single or Double Ended

Element Diameter
Slim profile

Mounting Flange
Optional

Watt Density
up to 40 W/in2

Length Tolerance
+/-2% or +/-5mm

Max. Temp
750C

Shape
Tubular rod

Immersion Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Immersion Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Experience top-tier heating performance with our matchless Immersion Heater, crafted for both industry and laboratory use. Engineered with a redoubtable Ni-Cr 80/20 conductor and customizable watt density up to 40 W/in2, this special heater ensures high efficiency. High-purity siliconized MGO insulation delivers robust safety and precision. Featuring a corrosion-resistant stainless steel, Inconel, or titanium build, and a slim-profile tubular rod shape, it's built to last. Limited stock-get it now for a last chance to upgrade your heating system with a customizable, high-performance solution!

Special Features & Media Applications

Our Immersion Heater boasts special features like high corrosion resistance, slim element diameter, and high-purity insulation, making it a standout in its class. Usage spans a range of applications, including liquid heating in industrial and laboratory environments. The heater adapts seamlessly to customizable immersion lengths, wattages, and mounting options. Whether used in aggressive chemical solutions or pure water, this device provides reliable, uniform heat with exceptional performance tailored to your specific media.

Sample Availability & Export Markets

Samples are available to facilitate proposal amounts and compatibility with your processes. Our primary export markets include Asia, Europe, and North America, ensuring prompt arrival and strong support for global clients. We also cater extensively to the main domestic market across India. Whether your requirement is a single prototype or a bulk arrangement, our streamlined process ensures efficient delivery and guidance on selection, making us a preferred partner for diverse heating needs.

FAQ's of Immersion Heater:

Q: How does the Immersion Heater ensure safety in high-temperature applications?

A: The heater uses high-purity siliconized MGO insulation and a robust Ni-Cr 80/20 conductor, ensuring excellent protection against electrical and thermal hazards in demanding environments.

Q: What are the primary usage types and application media for this heater?

A: This immersion heater is ideal for heating liquids such as water and chemicals in industrial or laboratory settings, thanks to its corrosion resistance and customizable configurations.

Q: When should I request a sample for compatibility testing?

A: You can request a sample at any time to assess fit and performance within your specific system before committing to a large proposal amount.

Q: Where can the Immersion Heater be installed?

A: It can be installed directly into tanks or containers using optional mounting flanges, and is suitable for both industrial plants and laboratory equipment.

Q: What is the process to customize my Immersion Heater?

A: Contact us with your requirements regarding wattage, immersion length, termination, and mounting needs. Our engineering team will assist in designing a heater tailored to your application.

Q: How does the heater's corrosion resistance benefit sensitive processes?

A: High corrosion resistance ensures longevity and reliability even in aggressive or reactive liquids, reducing maintenance and replacement costs over time.
