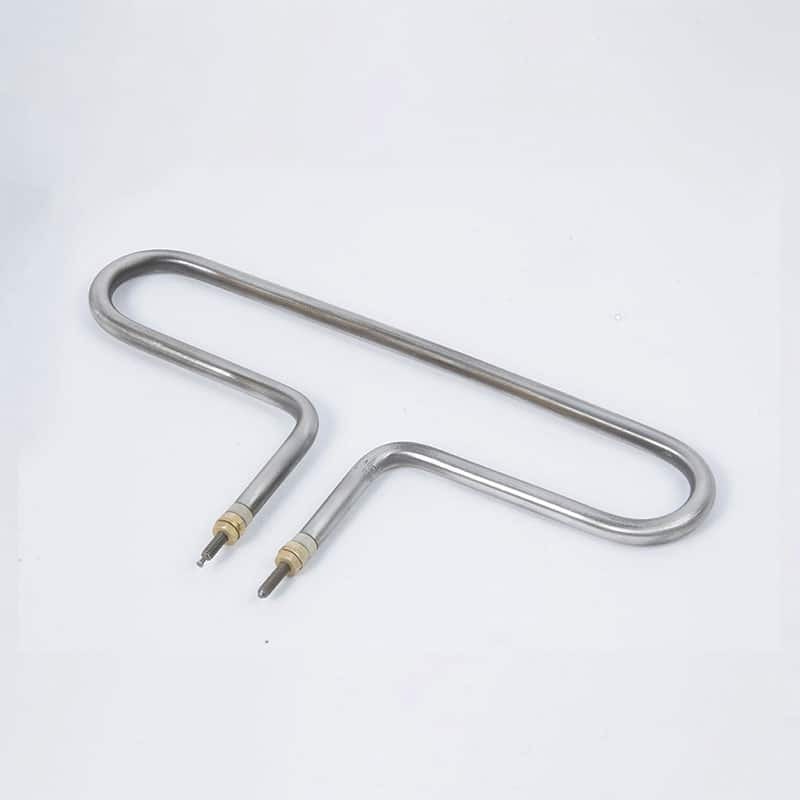

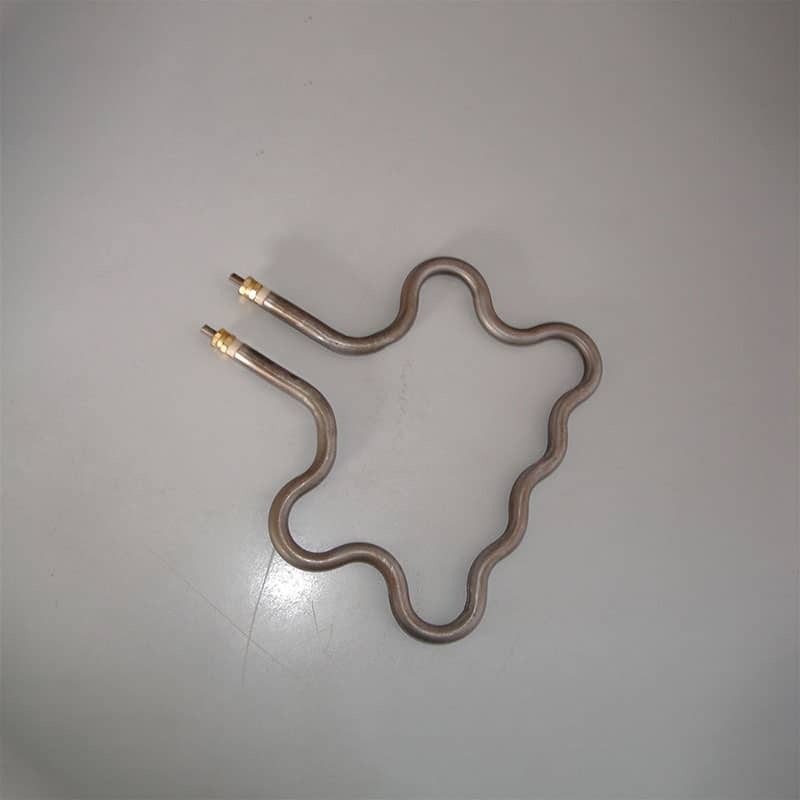

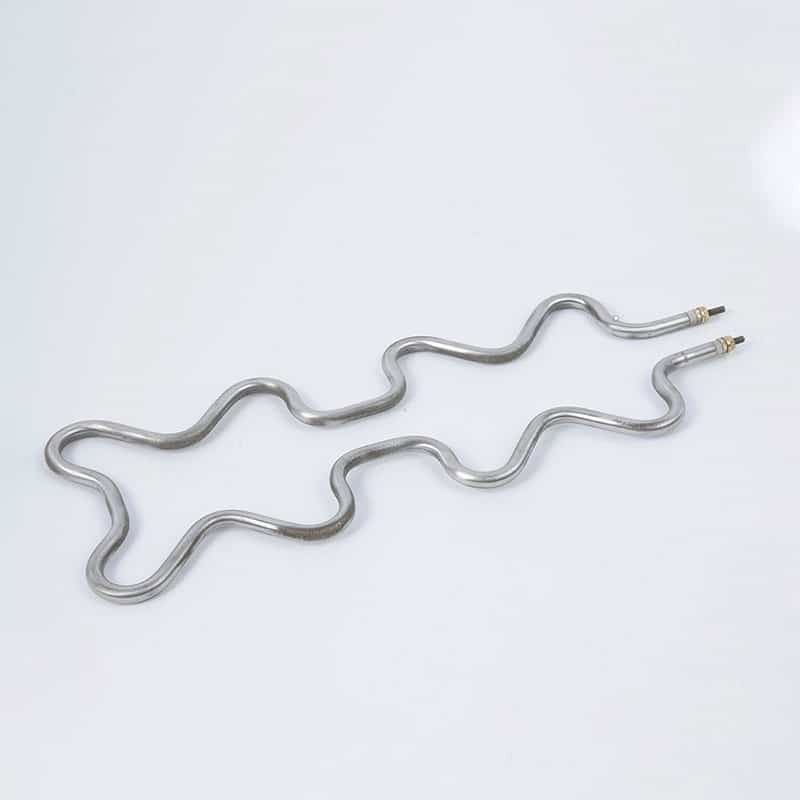

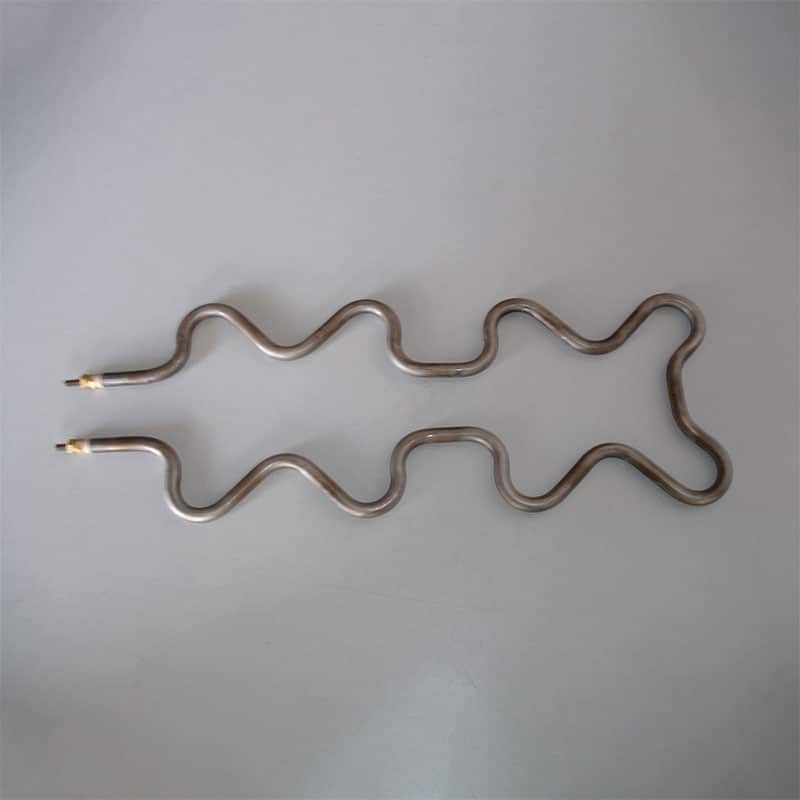

Mainfold Tubular Heater

Name: Mainfold Tubular Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Mainfold Tubular Heater Specification

Usage & Applications
Plastic Injection Molding, Manifold heating

Type
Mainfold Tubular Heater

Material
Stainless steel, Inconel alloy, Titanium

Capacity
Based on application

Voltage
Customizable

Power
Customizable

Power Source
Electric

Input Voltage
110V/220V/380V (on request)

Output Voltage
As per specifications

Installation Type
Flanged, threaded, or customized

Dimension (L*W*H)
As per requirement

Weight (kg)
Depends on configuration

Color
Metallic

Length Tolerance
+/- 2%

Mounting
Horizontal/vertical

Complex Shapes
Customized

Corrosion Resistance
High

High Voltage Tolerance
0mA@1500V

Sheath Material
Stainless, Inconel, Titanium

Heat Distribution
Uniform

Diameters
6.6mm to 12.4mm

Max. Watt Density
6 W/mm2

Element Shape
Bendable tubes

Termination
Customizable

Connection Type
Screw/Lead wire

Wattage Tolerance
+5%, -10%

Diameter Tolerance
+/- 0.1mm

Surface Finish
Polished

Max. Temperature
300C-550C

Resistance Tolerance
+/- 10%

Mainfold Tubular Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Mainfold Tubular Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Order today to secure the must-have Mainfold Tubular Heater, a valiant solution built for high-performance heating across demanding industrial applications. Featuring enlightened engineering, this potent heater is crafted with premium Stainless Steel, Inconel, or Titanium sheath for superior corrosion resistance and a polished finish. Customizable in wattage, voltage, element shape, and connection types, it ensures uniform heat distribution with precision tolerances. Its flexible, bendable design and robust build make it ideal for manifold heating in plastic injection molding and more. Reserve your customized heater now!

Versatile Applications and Surface Benefits

The Mainfold Tubular Heater delivers uniform heating across manifold surfaces, making it indispensable for plastic injection molding and manifold heating processes. Its adaptable structure, corrosion-resistant materials, and customizable design also suit other industrial applications requiring reliable, even heat distribution. Whether for process heating or equipment preheating, this heater efficiently addresses diverse requirements on both flat and curved surfaces, ensuring consistent performance across multiple applications while maintaining robust durability and energy efficiency.

Export Markets, Sale Price, and Delivery

Mainfold Tubular Heaters are available for export to key markets worldwide, including North America, Europe, Africa, Asia, and the Middle East. Reserve this product at a competitive sale price, with attractive list price offers available for bulk orders. FOB port options typically include major Indian ports. Expect efficient delivery times, with freight dispatched promptly upon order confirmation and customization specifics. Our supply chain ensures timely fulfillment whether shipped by sea or air transport, supporting your global operations.

FAQ's of Mainfold Tubular Heater:

Q: How can the Mainfold Tubular Heater be customized for my specific application?

A: You can customize the Mainfold Tubular Heater for your application by specifying the required sheath material, wattage, voltage, dimensions, element shape, termination, and installation type. Our team will work with your exact project needs.

Q: What is the typical process for ordering and receiving this heater?

A: First, submit your requirements and reserve the product by placing an order. We will confirm specifications, provide the sale price, and process fabrication. Once complete, the heater will be shipped from our designated FOB port to your location.

Q: Where are Mainfold Tubular Heaters most commonly used?

A: These heaters are primarily used in plastic injection molding and manifold heating systems. Their robust design also supports a range of industrial sectors requiring corrosion-resistant, uniform heating elements.

Q: What are the advantages of the potent materials used in this heater?

A: Stainless Steel, Inconel, and Titanium sheaths offer high corrosion resistance, enhanced durability, and efficient heat transfer, making the heater suitable for various harsh industrial environments.

Q: When should I choose customized shapes or connection types?

A: Opt for customized shapes or connections when your application requires specific element configurations, mounting conditions, or unique installation setups to achieve optimal heating results.

Q: How does the valiant design ensure uniform heat distribution?

A: The potent, bendable construction and precise watt density ensure that heat is evenly distributed across the targeted surface, improving operational efficiency and process reliability.
