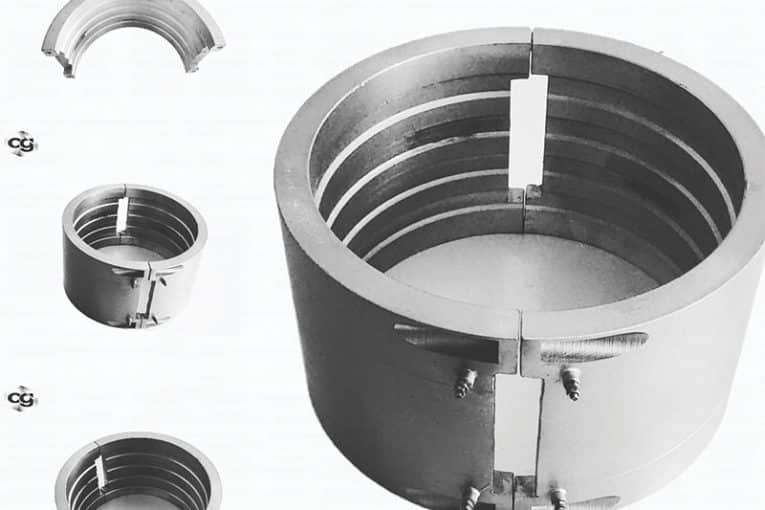

Aluminum Cast Heater

Name: Aluminum Cast Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Aluminum Cast Heater Specification

Usage & Applications
Plastic processing, Packaging, Food industries

Type
Aluminum Cast Heater

Material
Aluminum

Capacity
Custom / As per requirement

Voltage
110V, 230V, 380V, 430V

Power
300 W/inch2 (Aluminum), 45 W/inch2 (Bronze)

Power Source
Electric

Input Voltage
110V-430V

Output Voltage
Same as Input

Installation Type
Surface / Immersion mount

Dimension (L*W*H)
As per design (Square, Rectangle, Round)

Weight (kg)
As per size/design

Color
Silver / Natural Aluminum

Cooling Option
Air or Water Cooled

Terminal Type
Screw/Crimped Box

Power Tolerance
+/- 10%

Machine Tolerance
+2mm dia./+3mm diameter

Max Temperature
400C (Al), 600C (Bronze)

Heater Data
As per immersion heater

Aluminum Cast Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Aluminum Cast Heater

Product Description

Ceramic Band Heaters are industrial heating elements designed for uniform circumferential heating of cylindrical surfaces such as injection molding barrels, extrusion machines, and processing equipment. They offer high thermal efficiency, long service life, and excellent heat transfer performance.

Construction Details

Component	Specification
Sheath Material	Stainless Steel (SS 304) / Mild Steel (MS) Anodized Sheet
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20) resistance wire
Insulation Type	High-grade ceramic segmented insulation blocks
Insulation Thickness	32 mm / 54 mm / 74 mm (as per design)
Outer Construction	Rigid metal casing with corrosion-resistant finish
Internal Structure	Ceramic bead / ceramic tile insulation system

Electrical Specifications

Parameter	Specification
Voltage Rating	110 V / 230 V / 440 V
Power Density (Watt Density)	25 to 50 W/in²
Frequency	50-60 Hz
Resistance Tolerance	10.00%
Insulation Resistance	> 5 M (at 500V DC)
Dielectric Strength	1500V AC for 1 minute

Mechanical Dimensions

Parameter	Specification
Inner Diameter (ID)	50 mm and above
Length / Width	50 mm and above
Thickness	12 mm
Design Tolerance	+1 mm (diameter), +2 mm (length/width)

Clamping & Mounting

Parameter	Specification
Clamping Type	M6 Allen Bolt with spring mechanism
Mounting Style	Adjustable clamp type / locking system
Fitting Strength	High-pressure grip for uniform heat transfer
Expansion Compensation	Spring-loaded tension design

Terminal & Connection Options

Type	Specification
Standard Terminal	Junction box
Optional Terminal	Junction box with braided stainless steel wire leads
Alternative Option	Screw-type terminal connection
Wire Insulation	High-temperature fiberglass sleeving
Earthing Provision	Provided in junction box

Thermal Performance

Parameter	Specification
Maximum Operating Temperature	Up to 450^oC - 700^oC (depending on application)
Heat Distribution	Uniform 360^o circumferential heating
Thermal Efficiency	85% - 95%
Heat Transfer Mode	Conduction + radiation

Application Areas

Injection molding machines
Plastic extrusion barrels
Blow molding machines
Packaging machinery
Rubber processing equipment
Industrial heating systems

Quality & Testing Standards

100% electrical testing before dispatch
Hi-pot (dielectric) test at 1500V AC
Resistance and wattage verification
Thermal load testing (batch basis)
ISO 9001:2015 manufacturing process compliance

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10oC to 80^oC
Humidity	Up to 90% RH (non-condensing)
Installation	Industrial indoor environment

Packaging & Export Standards

Individual thermally protected packing
Moisture-proof poly + corrugated box
Wooden crate for bulk export shipment
Product labeling with model, voltage & batch number

Customization Options

Special voltage designs
Higher watt density (up to 50 W/in)
Different insulation thickness options
Customized junction box design
Export-grade SS 304 full body construction

Advance Purchase your illustrious Aluminum Cast Heater, designed for virtuoso performance in demanding industries. With unbeatable precision, it reaches a max temperature of 400C (Aluminum) and 600C (Bronze), available in both air and water-cooled options. Supporting voltages from 110V to 430V, surface or immersion mounting, and strict tolerances (+2/3mm, +/-10% power), it adapts seamlessly to custom design needs. Buy now-this exclusive offer is ending soon. The aluminum cast heater is ideal for plastic processing, packaging, and food industries, backed by top Indian manufacturers and suppliers.

Versatile Usage and Key Features of Aluminum Cast Heaters

Aluminum Cast Heaters excel in demanding applications, offering impeccable performance in plastic processing, packaging, and food industries. Constructed from high-grade aluminum, they support both surface and immersion mounting. The heaters are customizable for specific dimensions and capacities, with power ratings of 300 W/in2 for aluminum and 45 W/in2 for bronze. With easy installation and superior thermal conductivity, these heaters guarantee precise and stable operation for various industrial needs.

Main Export Markets, Proposal Evaluation, and Payment Terms

Aluminum Cast Heaters enjoy an established export market, reaching clients in various international territories. Potential buyers can request product samples for preliminary validation. Proposals are competitively valued based on client requirements and order volume. Payment terms are flexible, accommodating secure international transfer options. The highly esteemed manufacturer and supplier from India guarantees prompt response, ensuring clients experience transparent negotiations throughout the process.

FAQ's of Aluminum Cast Heater:

Q: How do I select the correct Aluminum Cast Heater for my application?

A: Determine the required dimensions, mounting type (surface or immersion), input voltage, and desired cooling option (air or water). Consider your operating temperature and industry (e.g., plastics or food) to tailor your choice.

Q: What are the main features that distinguish this Aluminum Cast Heater from alternatives?

A: This heater offers unrivaled thermal performance, robust construction from premium aluminum, flexible voltage input (110V-430V), and adaptable installation options. Its precise machine and power tolerance deliver consistent and efficient heating.

Q: Where is the Aluminum Cast Heater commonly used?

A: Primarily found in plastic processing, packaging, and food industries, these heaters are ideal for applications demanding reliable and uniform heat transfer with trusted safety standards.

Q: When can I expect sample availability and delivery timelines?

A: Sample units can be supplied promptly upon request, and delivery timelines are finalized according to your proposal and export destination, ensuring efficient fulfillment.

Q: What benefits do air and water cooling options provide?

A: Air cooling suits general industrial heating, while water cooling efficiently manages higher-temperature operations. Both cooling options enhance operational safety and extend heater service life.
