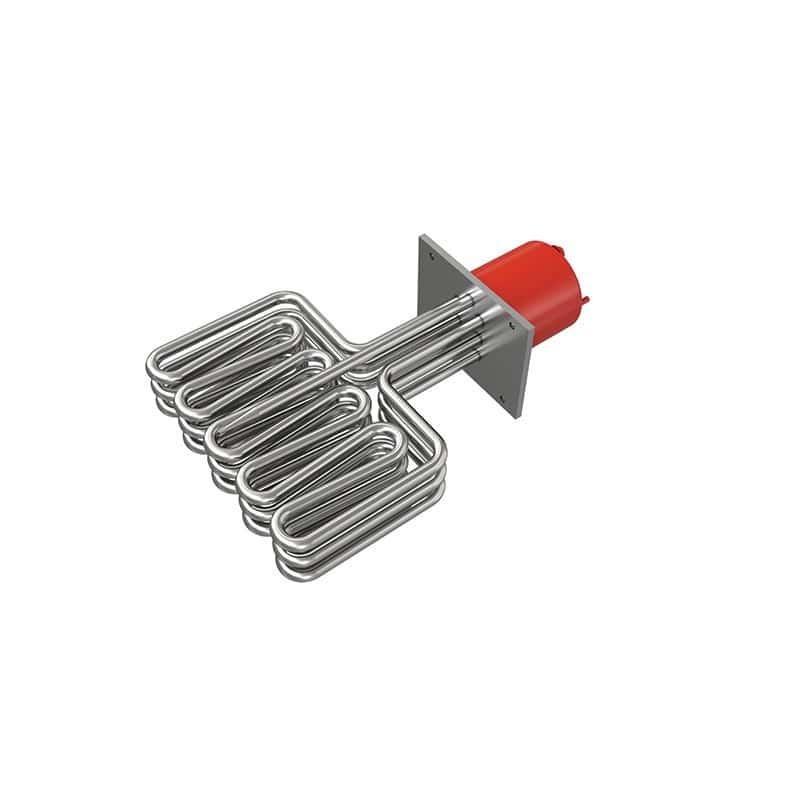

U-Shape Multi-finger Tubular Heater

Name: U-Shape Multi-finger Tubular Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

U-Shape Multi-finger Tubular Heater Specification

Usage & Applications
Industrial heating, tanks, oils, liquids

Type
U-Shape Multi-finger Tubular Heater

Material
Stainless Steel, Inconel alloy, Titanium

Capacity
Customize

Voltage
110 V to 415 V

Power
Customize as per requirement

Power Source
Electric

Input Voltage
110 V to 415 V

Output Voltage
110 V to 415 V

Installation Type
Flange or Screw Mounted

Dimension (L*W*H)
Customize

Weight (kg)
Depends on size

Color
Metallic Silver

Rod Diameter
Slim profile

Watt Density
Up to 40 W/in2

Sheath Finish
Polished metal

Shape
U-shaped

Number of Fingers
3-8 fingers typical

Terminal Type
Screw/Nut connections

Max. Temperature
750C

Insulation
High-purity siliconized MGO

High Voltage Tolerance
0mA @ 1500V

Multi-finger Design
Parallel rods

Immersion Length
Customizable

Conductor
Ni-Cr 80/20

Mounting Holes
For easy installation

Resistance Tolerance
10%

Length Tolerance
+2% or +5mm

U-Shape Multi-finger Tubular Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About U-Shape Multi-finger Tubular Heater

Product Overview

Tubular heaters are high-efficiency electric heating elements designed for use in air, liquids, and solid applications. These heaters are known for their durability, uniform heat distribution, and adaptability to various industrial environments.

Technical Specifications

Parameter	Specification
Sheath Material	SS304 / SS316 / Incoloy 800
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation Material	High Purity Magnesium Oxide (MgO)
Voltage Range	110V / 230V / 380V / 415V
Resistance Tolerance	+10%
HV Test0 mA leakage	at 1500V
Insulation Resistance	> 200 M
Maximum Temperature	Up to 750^oC
Available Sizes	(Diameter:- 5 mm, 6 mm, 8 mm, 8.5mm, 10.8 mm, 12 mm, 14 mm, 16 mm, 18 mm, 19 mm

Key Features

Corrosion-resistant stainless steel and Incoloy sheath
High thermal efficiency and uniform heating
Superior dielectric strength insulation
Flexible design for custom shapes-(3D bending)
Long service life under high temperatures

Applications

Industrial ovens and furnaces
Water and oil heating systems
HVAC systems
Plastic and rubber machinery
Food processing equipment
Chemical and process industries
lather industries
Paper industries

Quality & Testing

100% test conduct before dispatch
Insulation resistance and HV testing performed
Test Certificate: Available on request

Mounting & Termination

Threaded terminals
Lead wire connections
Ceramic terminal blocks
Flanged and threaded mounting options

Packaging & Export

Standard export-quality packaging-(wooden box)
Moisture-proof sealing
Packed in corrugated boxes
Labeling as per international shipping standards

Customization

Voltage and wattage as per requirement
Custom lengths and shapes
Special sheath materials
Application-specific design

Discover the hot-selling U-Shape Multi-finger Tubular Heater, engineered for formidable performance in industrial settings. Features include Ni-Cr 80/20 conductor, high-purity siliconized MGO insulation, and a slim-profile polished metal sheath. With sensational watt density up to 40 W/in2, customizable power and immersion length, and a robust temperature threshold of 750C, this first-string heater excels in demanding environments. Installation is effortless with mounting holes and various terminal types. Try now for the best price and elevate your operations with this reliable, customizable heating solution!

Exceptional Application Flexibility with Competitive Edge

Suitable for a wide array of industrial heating applications-such as tanks, oils, and other liquids-the U-Shape Multi-finger Tubular Heater delivers versatile, reliable heat. Its robust construction, coupled with high-temperature endurance up to 750C, ensures continuous performance in commercial settings. The multi-finger parallel rod design provides rapid, uniform heating, while customizable options give customers a significant competitive advantage in efficiency and installation. Make your operations smoother and more dependable with this premier industrial heater.

Efficient Shipping and Ready Availability

This U-Shape Multi-finger Tubular Heater is available for quick dispatch from India's leading manufacturers and suppliers. Orders can be fulfilled through key transportation hubs such as Mumbai, Chennai, or other major FOB ports. We accept a variety of payment terms and offer sample availability for quality verification. Products are carefully packaged for safe transit and expedited to ensure minimal wait. Experience smooth and timely delivery, tailored for your supply chain needs.

FAQ's of U-Shape Multi-finger Tubular Heater:

Q: How does the U-Shape Multi-finger Tubular Heater improve industrial heating processes?

A: The U-Shape Multi-finger Tubular Heater provides rapid and uniform heating due to its parallel rod design and high watt density, enhancing efficiency and consistent temperature management in industrial processes.

Q: What are the key benefits of using high-purity siliconized MGO insulation in this heater?

A: High-purity siliconized MGO insulation ensures excellent dielectric strength, enhances heat transfer, increases operational safety, and extends the lifespan of the heater in harsh environments.

Q: Where can this heater be installed for optimal results?

A: The heater is designed for installation in tanks, oil reservoirs, and various liquid-containing vessels commonly found in manufacturing, process industries, and commercial heating systems.

Q: What customization options are available for this heater?

A: Customers can tailor immersion length, power rating, rod diameter, number of fingers, and mounting configuration to perfectly fit their specific application requirements.

Q: Is sample testing possible before placing a bulk order?

A: Yes, sample units are available so you can verify product quality and suitability for your application prior to making a larger purchase commitment.

Q: How quickly can the heater be dispatched after payment confirmation?

A: Thanks to streamlined logistics and stock availability, your order can be quickly dispatched for transportation, reaching your specified location promptly and securely.
