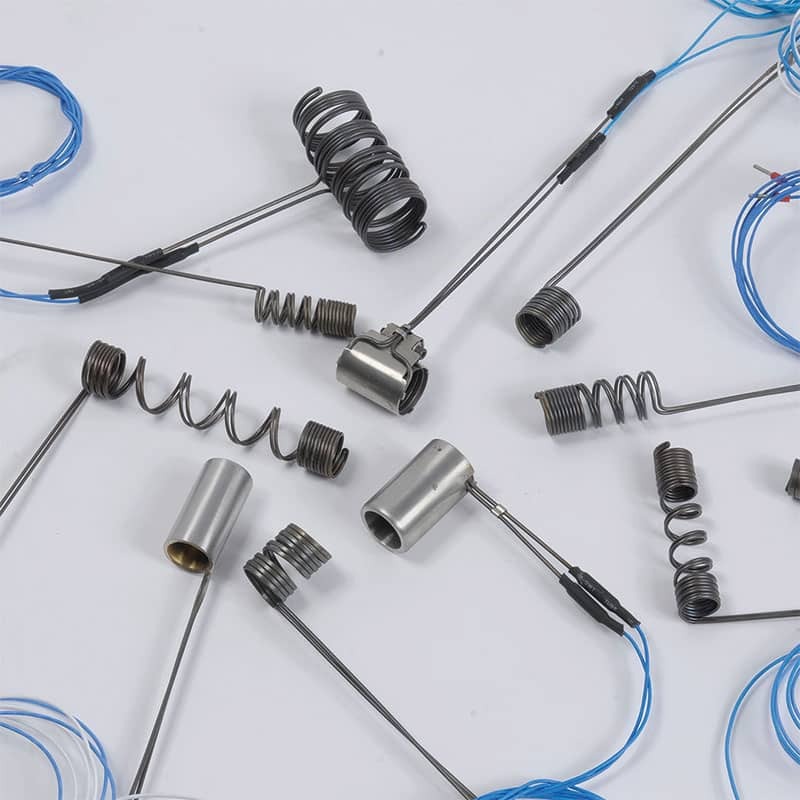

Micro Coil Heater

Name: Micro Coil Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Micro Coil Heater Specification

Usage & Applications
Hot runner systems, nozzle heating, injection moulding

Type
Micro Coil Heater

Material
Stainless Steel / Nickel Alloy

Capacity
Depends on coil size/design

Voltage
48V, 110V, 230V, 380V

Power
Custom (as per design)

Power Source
Electric

Input Voltage
48-380V

Output Voltage
Dependent on model

Installation Type
Clamp/Slot, custom fit

Dimension (L*W*H)
Custom sizes available

Weight (kg)
Approx. 0.1-0.5 kg

Color
Silver/Metallic

Bending Radius
Min. 3mm

Working Temperature
up to 750C

Insulation
10MW at 500V DC

Leakage current
<0.5mA at 250V AC

Insulation Material
Compressed MgO

Heating Element
NiCr 80/20

High Voltage Test
0mA @800V

Connection Leads
Nickel PTFE/Fiber cable

Surface Load
Up to 5%

Power Tolerance
+/- 10%

Thermocouple Option
J or K type

Micro Coil Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Micro Coil Heater

Product Description

Coil Heaters are high-efficiency compact heating elements designed for hot runner systems and precision industrial heating applications. They provide rapid heat transfer, uniform temperature distribution, and long operational life in high-temperature environments.

Construction Details

Component	Specification
Sheath Material	SS 310 / SS 304 / Nickel Alloy
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation	High Purity Magnesium Oxide (MgO) Micro Mesh
Construction Type	Precision wound compact coil heater
Cold Zone	35 + 28 mm adaptor section

Electrical Specifications

Parameter	Specification
Operating Voltage	230 V (+5%)
Resistance Tolerance	-10.00%
High Voltage Test	0 mA @ 800 V
Insulation Resistance	> 20 M
Frequency	50-60 Hz

Thermal Performance

Parameter	Specification
Maximum Sheath Temperature	Up to 750^oC
Heat Transfer Mode	Conduction
Efficiency	90% - 95%
Heating Response	Fast response high efficiency design

Lead & Termination Details

Type	Specification
Lead Wire	Pure Nickel PTFE insulated wire
Thermocouple (T/C)	J or K Type (Optional, Ungrounded)
Lead Exit	Standard / customized exit
Cold Zone Protection	Extended insulated cold zone provided

Mechanical Specifications

Parameter	Specification
Available Sizes	3.2 mm, 3.8 mm, 3x3 mm, 3.3x3.3 mm, 2.2x4.2 mm, 1.3x2.6 mm, 1.8x3.2 mm, 3x5.5 mm
Fit Type	Precision fit for hot runner applications
Tolerance	As per industrial standard

Applications

Hot runner systems
Plastic injection molding machines
Packaging machinery
Die heating applications
Medical & laboratory equipment
Precision industrial heating systems

Quality Standards

100% electrical testing before dispatch
High voltage test: 0 mA @ 800 V
Resistance tolerance verification (-10%)
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	Industrial applications
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Individual protective packing
Moisture-proof sealing
Export-grade carton packaging
Proper labeling with specifications

Customization Options

Special sheath materials (SS 310 / Nickel Alloy variants)
Different cold zone lengths
Built-in thermocouple (J/K type)
Custom watt density design
Heavy-duty industrial versions

Experience extraordinary efficiency with our Micro Coil Heater, built with a superb NiCr 80/20 heating element and robust stainless steel or nickel alloy. Designed for first-rate performance, this heater features compressed MgO insulation, supports working temperatures up to 750C, and ensures best-in-class electrical safety. With custom power and sizing, it fits various industrial needs, particularly for hot runner systems and injection moulding. Enjoy clearance offers and try now for the best price from the leading manufacturer and supplier in India. Hurry-secure superb quality today!

Precision Heating for Demanding Applications

Our micro coil heater excels in hot runner systems and nozzle heating, making it a preferred choice for injection moulding applications. Its compact design, coupled with a minimum bending radius of 3mm, allows seamless custom installation in tight spaces. The advantage lies in its consistent heat distribution and robust construction, which ensures longevity and first-rate energy efficiency. Experience extraordinary thermal management with this specialist heater, crafted for demanding industrial scenarios where reliable performance is paramount.

Fast Shipment and Global Reach

Benefit from competitive list prices and transparent valuation when you order micro coil heaters. We ensure prompt shipment across main export markets, including Asia, Europe, and North America. Domestically, we deliver extensively throughout India, ensuring swift access for local manufacturers. Delivery times are minimized through streamlined logistics, catering to both bulk and custom orders. Trust us for timely supply and world-class after-sales support, guaranteeing your operations stay on track without delay.

FAQ's of Micro Coil Heater:

Q: How do I select the right micro coil heater for my application?

A: Consider factors such as your required working temperature, coil size, power specifications, and the intended application (for example, hot runner system or nozzle heating). Custom options are available to match your specifications.

Q: What materials are used in the construction of the micro coil heater?

A: The micro coil heater is manufactured from high-quality stainless steel or nickel alloy and features a NiCr 80/20 heating element with compressed MgO insulation for optimal efficiency and durability.

Q: Where can micro coil heaters be used most effectively?

A: These heaters are ideally used in hot runner systems, injection moulding, and nozzle heating due to their compact design, powerful heating capability, and precise temperature control.

Q: What is the typical delivery process for micro coil heater orders?

A: Upon confirming your order and list price, products are packed and shipped promptly. Depending on your location and order size, delivery times are optimized for both domestic and international markets.

Q: When should I choose a custom dimension or power specification?

A: Custom options are advisable when your application demands specific heating output, unique installation dimensions, or requires a special power tolerance range. Customization ensures a perfect fit and optimal performance.
