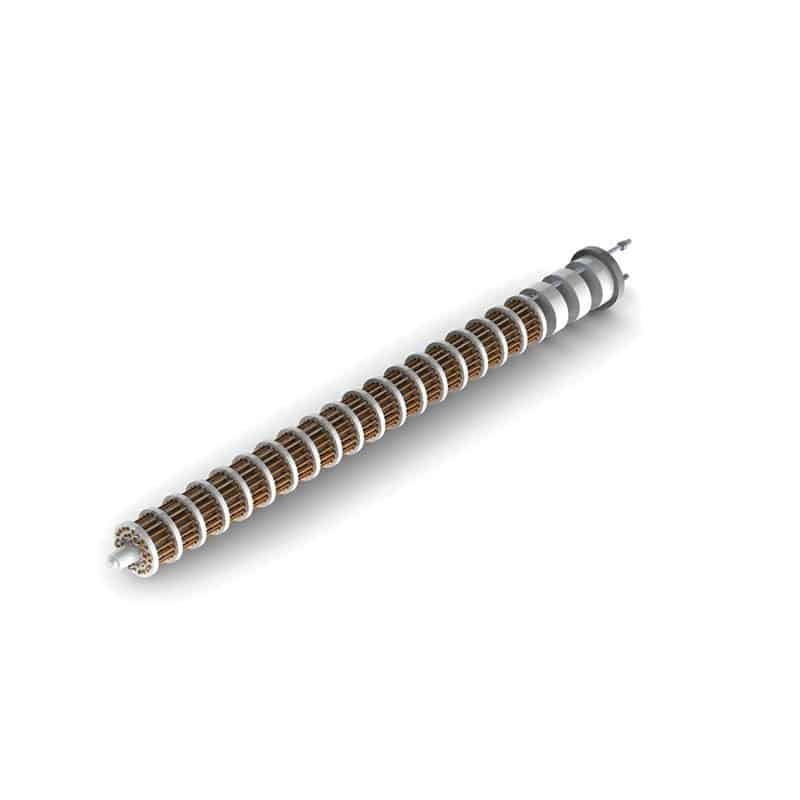

Bundle Rod Heater

Name: Bundle Rod Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Bundle Rod Heater Specification

Usage & Applications
Industrial heating, heat treatment, furnaces

Type
Bundle Rod Heater

Material
SS310 & Alloy-600

Capacity
As per requirement

Voltage
240 - 480 Vac

Power
0.9 kW to 75 kW

Power Source
Electric

Input Voltage
240 - 480 Vac

Output Voltage
As required

Installation Type
Flange Mounted

Dimension (L*W*H)
Customized (Diameter & Length)

Weight (kg)
Varies by size

Color
Metallic Grey

Ceramic Disc
flower / cup / circular type

Mounting
horizontal/vertical

Heating Element
A1, NiCr 80/20

Cold Resistance Tolerance
+/-3%

Radiant Tube Material
SS310 & Alloy-600

Shape
cylindrical bundle

Application
industrial heating

Fiber Disc
as per requirement

Ceramic Size
52 mm to 178 mm

Watt Density
up to 10 watt/cm2

Surface Finish
polished

Temperature Range
up to 1100 C

Customizable Options
diameter, length, flange

Bundle Rod Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Bundle Rod Heater

Product Description

Ceramic Furnace Heaters are high-temperature industrial heating elements designed for furnaces, kilns, and thermal processing systems. These heaters are engineered for extreme temperature applications, offering excellent thermal stability, uniform heat distribution, and long operational life.

Construction Details

Component	Specification
Heating Element	Advanced Ceramic Material (High Electrical Conductivity)
Insulation	High-grade refractory ceramic insulation
Outer Casing	Stainless Steel (SS 304 / SS 310) / Mild Steel
Core Material	High temperature ceramic core
Construction Type	Modular ceramic heating assembly
Mounting	Panel / wall / groove fitted

Electrical Specifications

Parameter	Specification
Operating Voltage	110 V / 230 V / 415 V / 440 V
Resistance Tolerance	+10%
Insulation Resistance	> 5 M
High Voltage Test	1500V AC for 1 minute
Frequency	50-60 Hz

Thermal Performance

Parameter	Specification
Temperature Range	Up to 1600^oC
Heat Transfer Mode	Radiation
Thermal Efficiency	High efficiency with advanced insulation
Heat Distribution	Uniform across furnace chamber

Mechanical Specifications

Parameter	Specification
Heater Type	Ceramic modules / panels
Size	As per furnace design
Thickness	As per application requirement
Installation	Replaceable modular design

Mounting & Installation

Parameter	Specification
Mounting Type	Wall / ceiling / side mounting
Fixing Method	Ceramic holders / brackets
Expansion Handling	High thermal shock resistance

Applications

Industrial ovens with high insulation
Melting furnaces
Laboratory furnaces
Heat treatment furnaces
Ceramic and glass industries
High-temperature process industries

Quality Standards

100% electrical testing before dispatch
High temperature endurance testing
Resistance and wattage verification
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	High-temperature industrial applications
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Shock-resistant packaging
Ceramic-safe protective packing
Export-grade wooden crate
Proper labeling with technical specifications

Customization Options

High temperature designs up to 1600^oC
Custom shapes and modular sizes
Multi-zone heating systems
Special refractory insulation
Heavy-duty export-grade furnace heaters

Discover the triumphant solution for industrial heating with our Bundle Rod Heater, now at a reduced price. Select the prime configuration with a robust heating element (A1, NiCr 80/20) and radiant tube (SS310 & Alloy-600) that operates up to 1100C with 10 watt/cm2 watt density. Enlightened by customization, you can find tailored diameter, length, flange, and ceramic discs for your requirements. Ideal for furnaces and heat treatment, this metallic grey, flange-mounted heater delivers reliability in industrial settings. Dimensions and voltage are as required for installation flexibility.

Prime Commercial Utility & Versatile Applications

Bundle Rod Heaters are widely used across commercial sectors such as manufacturing, metal processing, chemical industries, and heat treatment facilities. Designed for application in industrial furnaces and ovens, these heaters efficiently radiate heat across a variety of media, including air, gases, and liquids. Their robust construction and customizable features support seamless integration into diverse processes, ensuring consistent, energy-efficient heating for optimal operational outcomes and prolonged equipment longevity in demanding industrial environments.

Packaging Details, Lead Time, and Payment Options

Each heater is securely packed to prevent damage during transit, adhering to stringent quality standards. List prices are provided upon request, and opportunities for exchange or customized orders are available. Products are typically shipped within two to four weeks after order confirmation, with delivery times depending on customization. Flexible payment terms are provided, including advance and milestone payments, ensuring streamlined transactions for national and international clients. Our reliable logistics partners facilitate prompt arrival to your location.

FAQ's of Bundle Rod Heater:

Q: How can I customize the Bundle Rod Heater for my specific industrial application?

A: You can customize the diameter, length, flange, and even the type and size of ceramic discs according to your operational requirements. Please provide your specifications when placing the order.

Q: What makes the Bundle Rod Heater suitable for high-temperature industrial processes?

A: Constructed with premium SS310 and Alloy-600 and featuring a NiCr 80/20 heating element, the heater operates efficiently up to 1100C, making it ideal for intensive industrial heating, heat treatment, and furnace applications.

Q: Where can I install this heater and what mounting options are available?

A: The Bundle Rod Heater is designed for both horizontal and vertical installation and is typically flange-mounted. This flexibility supports diverse equipment layouts and space considerations.

Q: What is the process for ordering and shipping a Bundle Rod Heater?

A: Simply select your desired specifications and contact us for a quotation. Once your order is confirmed, your heater will be manufactured, packaged securely, and shipped within the specified delivery window.

Q: What are the benefits of using this heater in industrial environments?

A: The heater ensures reliable, high-efficiency heating with a robust build, customizable options, and optimal heat transfer, contributing to energy savings and improved performance in demanding applications.
