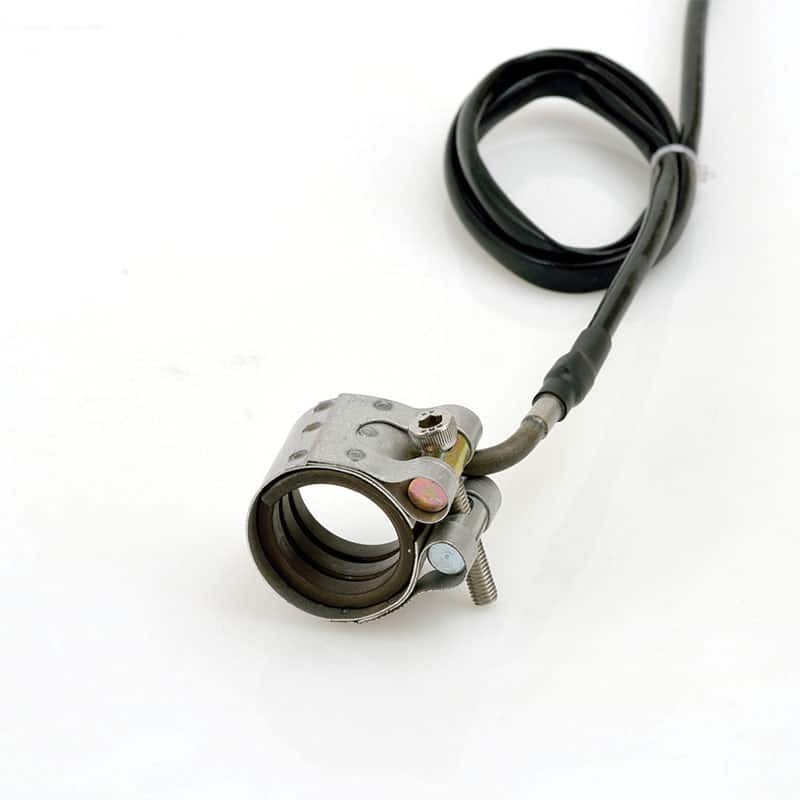

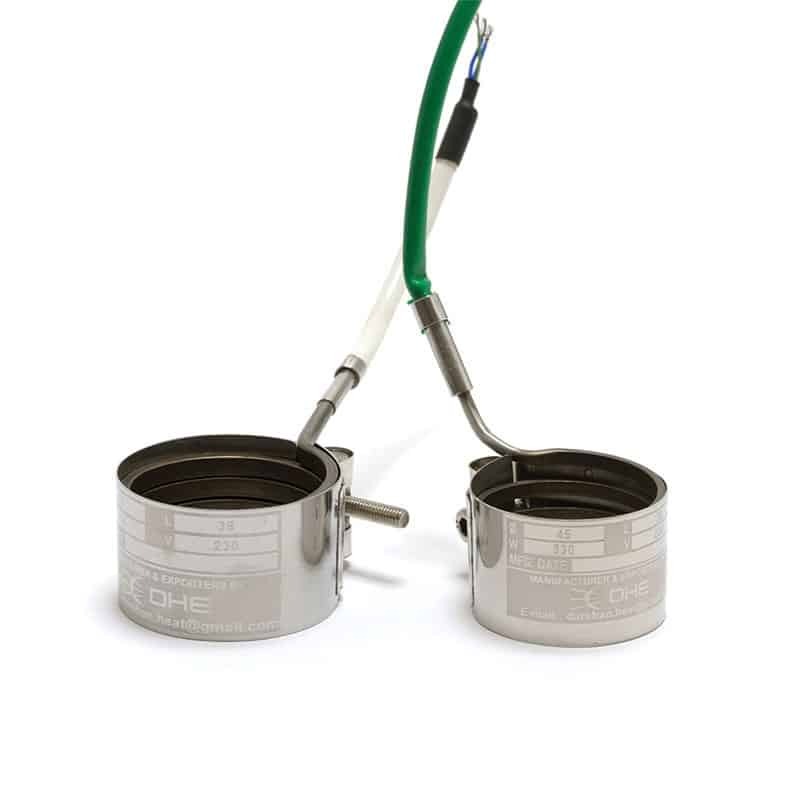

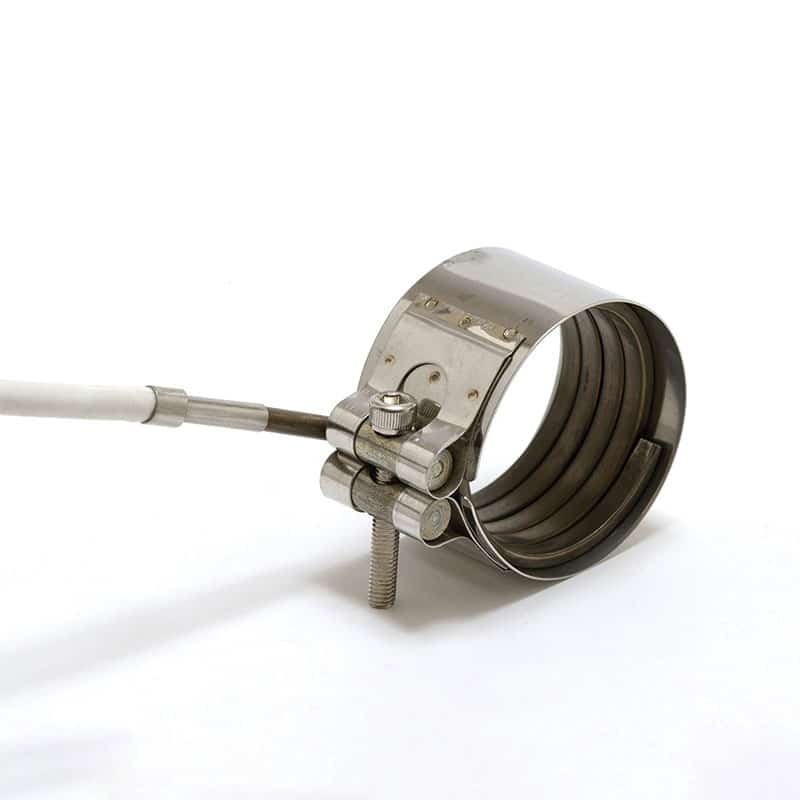

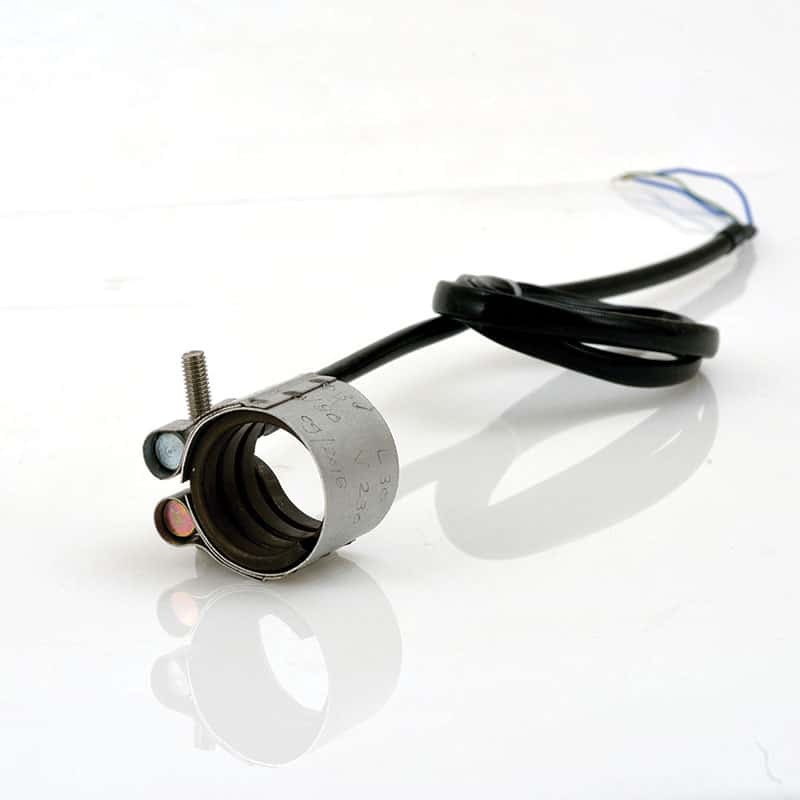

Nozzle Heater

Name: Nozzle Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Nozzle Heater Specification

Usage & Applications
Plastic Injection Molding / Hot Runner

Type
Nozzle Heater

Material
Stainless Steel / Mild Steel / Brass

Capacity
Based on model

Voltage
48V, 110V, 230V, 380V

Power
Custom as per requirement

Power Source
Electric

Input Voltage
48V / 110V / 230V / 380V

Installation Type
Clamp On / Slip On

Dimension (L*W*H)
As per order specification

Weight (kg)
Varies by size

Color
Metallic

Conductor
Compressed MgO

Lead Type
Nickel/PTFE/Fiber Cable

Surface Load Limit
+/- 5%

Corrosion Resistant
Yes

High Voltage Test
0mA @ 800V

Custom Sizes
Available

Sheath Material
Stainless Steel / Nickel Alloy

Mounting
Easy Clamp

Insulation Resistance
10 MW @ 500V DC

Leakage Current
<0.5mA @ 250V AC

Heat Transfer
Efficient

Working Temperature
up to 750C

Power Tolerance
+/- 10%

Min. Bending Radius
3 mm

Nozzle Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Nozzle Heater

Product Description

Coil Heaters are high-efficiency compact heating elements designed for hot runner systems and precision industrial heating applications. They provide rapid heat transfer, uniform temperature distribution, and long operational life in high-temperature environments.

Construction Details

Component	Specification
Sheath Material	SS 310 / SS 304 / Nickel Alloy
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation	High Purity Magnesium Oxide (MgO) Micro Mesh
Construction Type	Precision wound compact coil heater
Cold Zone	35 + 28 mm adaptor section

Electrical Specifications

Parameter	Specification
Operating Voltage	230 V (+5%)
Resistance Tolerance	-10.00%
High Voltage Test	0 mA @ 800 V
Insulation Resistance	> 20 M
Frequency	50-60 Hz

Thermal Performance

Parameter	Specification
Maximum Sheath Temperature	Up to 750^oC
Heat Transfer Mode	Conduction
Efficiency	90% - 95%
Heating Response	Fast response high efficiency design

Lead & Termination Details

Type	Specification
Lead Wire	Pure Nickel PTFE insulated wire
Thermocouple (T/C)	J or K Type (Optional, Ungrounded)
Lead Exit	Standard / customized exit
Cold Zone Protection	Extended insulated cold zone provided

Mechanical Specifications

Parameter	Specification
Available Sizes	3.2 mm, 3.8 mm, 3x3 mm, 3.3x3.3 mm, 2.2x4.2 mm, 1.3x2.6 mm, 1.8x3.2 mm, 3x5.5 mm
Fit Type	Precision fit for hot runner applications
Tolerance	As per industrial standard

Applications

Hot runner systems
Plastic injection molding machines
Packaging machinery
Die heating applications
Medical & laboratory equipment
Precision industrial heating systems

Quality Standards

100% electrical testing before dispatch
High voltage test: 0 mA @ 800 V
Resistance tolerance verification (-10%)
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	Industrial applications
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Individual protective packing
Moisture-proof sealing
Export-grade carton packaging
Proper labeling with specifications

Customization Options

Special sheath materials (SS 310 / Nickel Alloy variants)
Different cold zone lengths
Built-in thermocouple (J/K type)
Custom watt density design
Heavy-duty industrial versions

Purchase the unassailable Nozzle Heater, engineered for glorious performance in demanding environments such as plastic injection molding and hot runner systems. Featuring a lavish sheath crafted from Stainless Steel or Nickel Alloy, this ephemeral yet robust product ensures efficient heat transfer and unparalleled corrosion resistance. With a working temperature up to 750C, precise power tolerance, and superior insulation resistance, you get reliability that endures. Custom sizes and power ratings are available to fit your needs. Installation is effortless with its easy clamp design, and multiple cable types guarantee safety and versatility. Choose excellence-choose unyielding performance.

Nozzle Heater: Superior Material, Effortless Application, Distinctive Features

Our Nozzle Heater is constructed from stainless steel, nickel alloy, or brass, ensuring exceptional durability and corrosion resistance. The innovative clamp-on or slip-on application method allows for quick, straightforward installation, saving valuable time during setup. Noteworthy features include a minimal bending radius of 3 mm, precise power tolerance (+/- 10%), and high insulation resistance, delivering both safety and efficiency. The heater supports various lead types and voltages, suitable for numerous industrial applications.

Nozzle Heater Sample Policy, Premium Packing & Reliable Dispatch

We offer premium Nozzle Heater samples to help you make an informed decision. Our sample policy is customer-centric, prioritizing satisfaction and transparency at every stage. All products undergo meticulous packing & dispatch procedures, ensuring secure, damage-free shipping. Each order is packaged to preserve product integrity during transport services, whether domestic or international. Trust us for reliable sample processing, expert packaging, and timely delivery to your doorstep for seamless project integration.

FAQ's of Nozzle Heater:

Q: How can I purchase a custom-sized Nozzle Heater suited to my requirements?

A: Simply contact us with your specific dimension, voltage, and power needs. We manufacture Nozzle Heaters as per order specification, ensuring a perfect fit for your application.

Q: What applications are most compatible with this Nozzle Heater?

A: Our Nozzle Heaters are primarily used in plastic injection molding and hot runner systems, offering efficient heat transfer and corrosion resistance in demanding industrial settings.

Q: When is it advisable to opt for Nickel Alloy as the sheath material?

A: Nickel Alloy should be chosen when your application requires higher resistance to extreme temperatures and aggressive substances, ensuring extended heater life and stability.

Q: Where are these Nozzle Heaters manufactured and supplied from?

A: We are based in India, serving as both manufacturer and supplier to clients locally and globally.

Q: What are the key features that provide unassailable performance and safety?

A: Key attributes include a high working temperature (up to 750C), precise power tolerance, robust insulation resistance, efficient heat transfer, and corrosion-resistant materials.

Q: How is packaging and transport handled for safe delivery?

A: Our Nozzle Heaters are packed with high-grade materials and dispatched through reliable transport services, ensuring products reach you in pristine condition.
