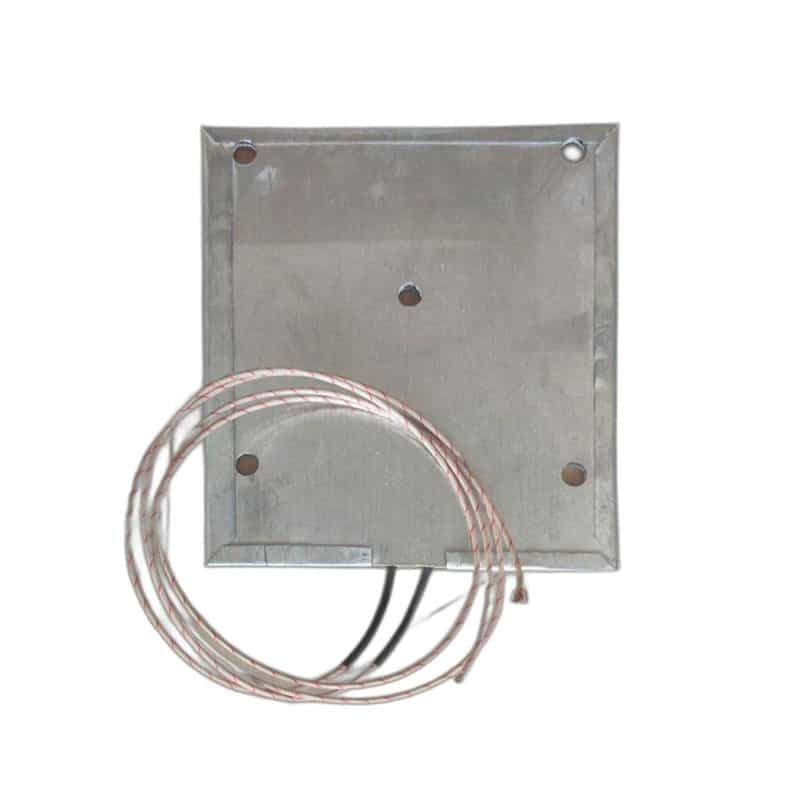

Mica Strip Heater

Name: Mica Strip Heater
Brand: DHE Heaters Private Limited
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Mica Strip Heater Specification

Usage & Applications
Heating, Industrial, Panel and Mould Heating

Type
Mica Strip Heater

Material
Stainless Steel, Mild Steel, Galvanized Iron

Capacity
15 w/sq. inch watt density

Voltage
110 V to 440 V

Power
Customizable

Power Source
Electric

Input Voltage
110 V to 440 V

Output Voltage
As per configuration

Installation Type
Surface Mounted

Dimension (L*W*H)
Custom size, width 100 mm and above, thickness 6 mm

Weight (kg)
Varies with size

Color
Metallic Silver

Max Sheath Surface Load
+/-5%

Clamping
M6 Allen bolt, spring

Terminal Types
Junction box, post terminal

Lead Exit Types
Multiple available

High Voltage Test
0mA @800V

Conductor
Ni-Cr 80/20

Sheath Finish
Brushed metallic

Mounting Holes
Pre-drilled ends

Shape
Rectangular profile

Heat Distribution
Uniform

Operating Temp Range
Up to 350C

Resistance Tolerance
+/-5%

Insulation Thickness
16 mm

Mica Strip Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Mica Strip Heater

Product Description

Ceramic Band Heaters are industrial heating elements designed for uniform circumferential heating of cylindrical surfaces such as injection molding barrels, extrusion machines, and processing equipment. They offer high thermal efficiency, long service life, and excellent heat transfer performance.

Construction Details

Component	Specification
Sheath Material	Stainless Steel (SS 304) / Mild Steel (MS) Anodized Sheet
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20) resistance wire
Insulation Type	High-grade ceramic segmented insulation blocks
Insulation Thickness	32 mm / 54 mm / 74 mm (as per design)
Outer Construction	Rigid metal casing with corrosion-resistant finish
Internal Structure	Ceramic bead / ceramic tile insulation system

Electrical Specifications

Parameter	Specification
Voltage Rating	110 V / 230 V / 440 V
Power Density (Watt Density)	25 to 50 W/in²
Frequency	50-60 Hz
Resistance Tolerance	10.00%
Insulation Resistance	> 5 M (at 500V DC)
Dielectric Strength	1500V AC for 1 minute

Mechanical Dimensions

Parameter	Specification
Inner Diameter (ID)	50 mm and above
Length / Width	50 mm and above
Thickness	12 mm
Design Tolerance	+1 mm (diameter), +2 mm (length/width)

Clamping & Mounting

Parameter	Specification
Clamping Type	M6 Allen Bolt with spring mechanism
Mounting Style	Adjustable clamp type / locking system
Fitting Strength	High-pressure grip for uniform heat transfer
Expansion Compensation	Spring-loaded tension design

Terminal & Connection Options

Type	Specification
Standard Terminal	Junction box
Optional Terminal	Junction box with braided stainless steel wire leads
Alternative Option	Screw-type terminal connection
Wire Insulation	High-temperature fiberglass sleeving
Earthing Provision	Provided in junction box

Thermal Performance

Parameter	Specification
Maximum Operating Temperature	Up to 450^oC - 700^oC (depending on application)
Heat Distribution	Uniform 360^o circumferential heating
Thermal Efficiency	85% - 95%
Heat Transfer Mode	Conduction + radiation

Application Areas

Injection molding machines
Plastic extrusion barrels
Blow molding machines
Packaging machinery
Rubber processing equipment
Industrial heating systems

Quality & Testing Standards

100% electrical testing before dispatch
Hi-pot (dielectric) test at 1500V AC
Resistance and wattage verification
Thermal load testing (batch basis)
ISO 9001:2015 manufacturing process compliance

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10oC to 80^oC
Humidity	Up to 90% RH (non-condensing)
Installation	Industrial indoor environment

Packaging & Export Standards

Individual thermally protected packing
Moisture-proof poly + corrugated box
Wooden crate for bulk export shipment
Product labeling with model, voltage & batch number

Customization Options

Special voltage designs
Higher watt density (up to 50 W/in)
Different insulation thickness options
Customized junction box design
Export-grade SS 304 full body construction

Discover an exquisite Mica Strip Heater, ready to deliver blue-ribbon performance for industrial heating applications. Personalise your heater with custom dimensions and input voltage (110V-440V), and enjoy flawless uniform heat distribution tailored for demanding environments. With kingly features like Ni-Cr 80/20 conductor, robust 16 mm insulation, +/-5% resistance tolerance, and a brushed metallic finish, these units merge instant savings with style. Take advantage of pre-drilled mounting holes, multiple lead exits, and a sale price-ending soon for discerning buyers seeking quality and reliability.

Versatile Applications & Standout Features

Mica Strip Heaters are engineered for efficient heating in a multitude of settings, including industrial panels, moulds, and surface applications. The device boasts precise uniform heat distribution and a max operating temperature up to 350C, suiting it for demanding jobs. Customizable sizes ensure optimal installation, while multiple lead exit types and robust clamping systems adapt to various application media, offering unmatched versatility and durability for industrial processes.

Certifications, Sampling, and Swift Delivery

Each Mica Strip Heater is meticulously tested for quality compliance and comes with necessary certifications. We offer sample supply according to our sample policy, allowing you to evaluate performance before placing larger orders. With a reliable supply ability and quick dispatch assurance, customers experience smooth order completion. Take advantage of our special sale price while stocks last and benefit from rapid order fulfillment for both standard and personalised heater requirements.

FAQ's of Mica Strip Heater:

Q: How is the Mica Strip Heater customized to fit different industrial needs?

A: The Mica Strip Heater offers custom sizing for length, width (100 mm and above), and thickness (minimum 6 mm). Voltage, power, and terminal types can also be tailored to suit specific installation and operational requirements.

Q: What are the main benefits of using this heater in panel and mould heating?

A: Its uniform heat distribution and kingly durability make it ideal for panel and mould heating, ensuring consistent temperature control, improved energy efficiency, and reduced maintenance downtime.

Q: Where can the Mica Strip Heater be installed, and what mounting features does it include?

A: It is designed for surface mounting in industrial, panel, or mould heating applications, featuring pre-drilled ends for easy installation using M6 Allen bolt and spring clamping.

Q: What is the process for placing a sample order?

A: Simply reach out with your requirements. A sample will be provided as per our policy, allowing you to thoroughly assess the product before committing to a larger purchase.

Q: What types of application media are these heaters suitable for?

A: The heaters are optimized for use in applications requiring efficient electrical heating-such as plastic moulds, process tanks, and heating plates-thanks to versatile mounting and robust construction.
