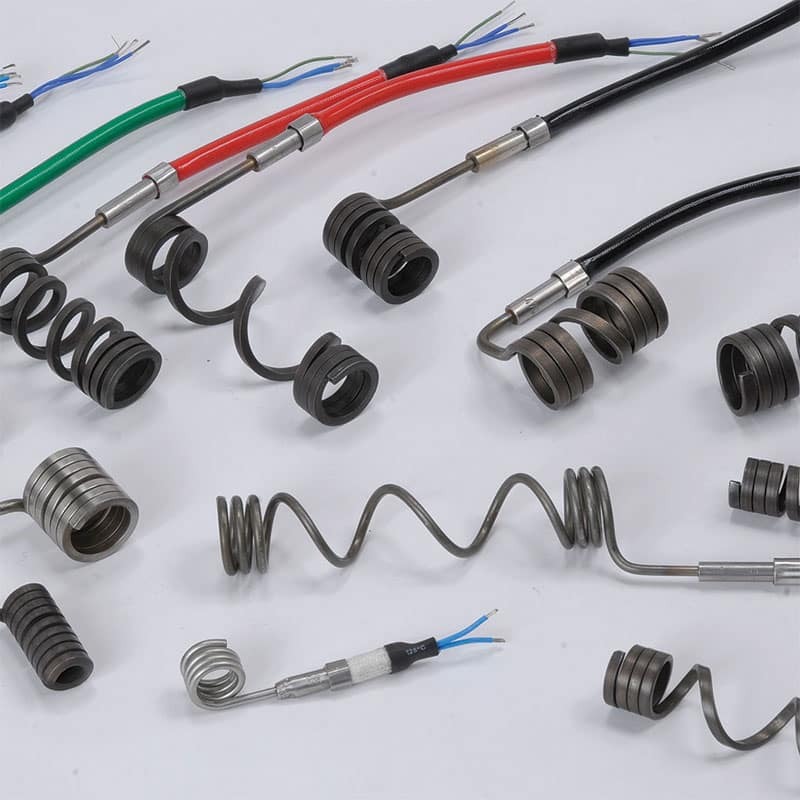

Coil Heater

Name: Coil Heater
Brand: DHE Heaters Private Limited
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Coil Heater Specification

Usage & Applications

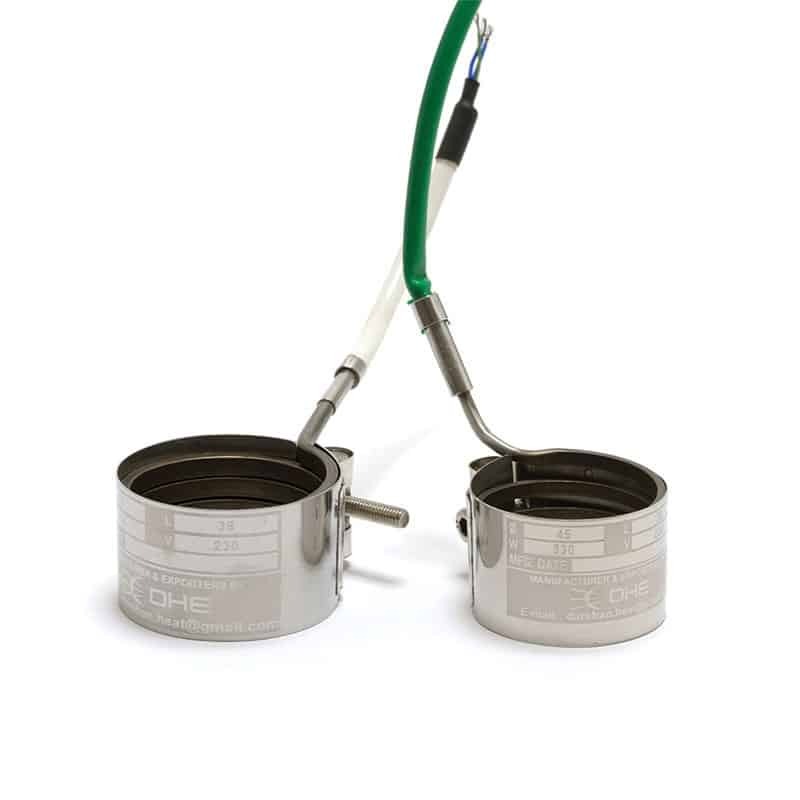

Moulds, Dies, Nozzle Heating

Type
Oil Filled Heater

Material
Stainless Steel

Capacity
Customizable Pcs/hr

Voltage
48V, 110V, 230V, 380V Ampere (amp)

Power
Custom (power tolerance +/-10%) Watt (w)

Power Source
Electric

Input Voltage
48V/110V/230V/380V Volt (V)

Output Voltage
As required Ampere (A)

Installation Type
Other

Dimension (L*W*H)
Custom sizes Millimeter (mm)

Weight (kg)
Depends on size Tonne

Color
Metallic Silver

Warranty
6 months

Connection Leads
Nickel conductor, PTFE/fiber

Max. Surface Load
+/- 5%

Corrosion Resistant
Yes

Mounting
Flexible clamps

Shockproof
Yes

Insulation Material
Compressed MgO

Min. Bending Radius
5 mm

Working Temperature
Up to 750C

Sheath Material
SS/Nickel alloy

Heating Element
NiCr 80/20

Quick Heating
Yes

Insulation
10 M @ 500V DC

Power Tolerance
+/- 10%

Lead Length
Standard/custom

Shape
Round/spiral

High Voltage Test
0mA @ 800V

Leakage Current
<0.5mA @ 250V AC

Application Area
Industrial heaters

Coil Heater Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Coil Heater

Product Description

Coil Heaters are high-efficiency compact heating elements designed for hot runner systems and precision industrial heating applications. They provide rapid heat transfer, uniform temperature distribution, and long operational life in high-temperature environments.

Construction Details

Component	Specification
Sheath Material	SS 310 / SS 304 / Nickel Alloy
Heating Conductor	Nickel-Chromium (Ni-Cr 80/20)
Insulation	High Purity Magnesium Oxide (MgO) Micro Mesh
Construction Type	Precision wound compact coil heater
Cold Zone	35 + 28 mm adaptor section

Electrical Specifications

Parameter	Specification
Operating Voltage	230 V (+5%)
Resistance Tolerance	-10.00%
High Voltage Test	0 mA @ 800 V
Insulation Resistance	> 20 M
Frequency	50-60 Hz

Thermal Performance

Parameter	Specification
Maximum Sheath Temperature	Up to 750^oC
Heat Transfer Mode	Conduction
Efficiency	90% - 95%
Heating Response	Fast response high efficiency design

Lead & Termination Details

Type	Specification
Lead Wire	Pure Nickel PTFE insulated wire
Thermocouple (T/C)	J or K Type (Optional, Ungrounded)
Lead Exit	Standard / customized exit
Cold Zone Protection	Extended insulated cold zone provided

Mechanical Specifications

Parameter	Specification
Available Sizes	3.2 mm, 3.8 mm, 3x3 mm, 3.3x3.3 mm, 2.2x4.2 mm, 1.3x2.6 mm, 1.8x3.2 mm, 3x5.5 mm
Fit Type	Precision fit for hot runner applications
Tolerance	As per industrial standard

Applications

Hot runner systems
Plastic injection molding machines
Packaging machinery
Die heating applications
Medical & laboratory equipment
Precision industrial heating systems

Quality Standards

100% electrical testing before dispatch
High voltage test: 0 mA @ 800 V
Resistance tolerance verification (-10%)
ISO 9001:2015 manufacturing compliance
Test certificate available on request

Environmental Conditions

Parameter	Specification
Ambient Temperature	-10^oC to 80^oC
Operating Environment	Industrial applications
Humidity	Up to 90% RH (non-condensing)

Packaging & Export Standards

Individual protective packing
Moisture-proof sealing
Export-grade carton packaging
Proper labeling with specifications

Customization Options

Special sheath materials (SS 310 / Nickel Alloy variants)
Different cold zone lengths
Built-in thermocouple (J/K type)
Custom watt density design
Heavy-duty industrial versions

Discover the exclusive value of our Sterling Coil Heater, crafted for noble industrial applications. Built with a magnificent NiCr 80/20 heating element, this product boasts compressed MgO insulation and corrosion-resistant stainless steel or nickel alloy sheath. Designed for efficient performance up to 750C, it offers a remarkable power tolerance of 10%. The coil features rapid heat-up, customizable voltage and size, and robust shockproof construction. Buy online for a reliable, custom solution-ideal for moulds, dies, and nozzle heating across India's industrial landscape.

Industrial Applications & Versatile Usage

Our Coil Heater finds its place in a broad range of industrial environments, including moulds, dies, and nozzle heating systems. Used as a primary heating source in electric enclosures, this unit delivers precision and reliability. The round or spiral design adapts to unique installation spaces, supported by flexible clamps for secure mounting. Regardless of the complexity of your heating requirements, this coil heater ensures optimal performance in demanding manufacturing and processing settings.

Unmatched Supply, Packaging & Delivery Efficiency

Supported by high-yield manufacturing, the supply ability for our coil heater ensures you get what you need when you need it. Each unit is expertly packaged to protect its integrity during goods transport, utilizing industry-approved materials. Available delivery options include express shipping, ensuring your order arrives swiftly anywhere in India. Expect prompt dispatch and dedicated support, seamlessly streamlining the procurement process from confirmation to installation.

FAQ's of Coil Heater:

Q: How does the coil heater ensure quick heating and energy efficiency?

A: The coil heater utilizes a NiCr 80/20 heating element and compressed MgO insulation to maximize heat transfer and minimize energy loss, ensuring rapid and efficient heating for industrial applications.

Q: What are the key applications of this coil heater in industry?

A: This coil heater is primarily used for heating moulds, dies, and nozzles, and is well-suited for a variety of industrial electric enclosure heating needs due to its robust construction and flexible mounting options.

Q: Where can this coil heater be mounted and installed?

A: The coil heater offers installation versatility with insert or enclosure mount options and flexible clamps, making it easy to adapt to different equipment configurations and spaces.

Q: What customization options are available for the coil heater?

A: Customers can specify custom dimensions, lead lengths, output voltages, and power capacities to best suit their particular requirements. Both standard and tailor-made solutions are available.

Q: How is the coil heater packaged and delivered?

A: Each coil heater is packaged with protective, industry-standard materials to prevent damage during goods transport, and express shipping options are available to ensure timely delivery across India.

Q: What are the benefits of using a stainless steel or nickel alloy sheath?

A: Stainless steel or nickel alloy sheaths provide excellent corrosion resistance and durability, making the coil heater suitable for challenging industrial environments and ensuring long-lasting performance.
